66 20 537 Removing and Installing/Replacing Rear Middle Right Ultrasonic Transducer

66 20 537 Removing And Installing/replacing One Rear Middle Right Ultrasonic Sensor







NOTE: Trim panels can vary depending on engine version.

Lever out expansion rivets (1).
Unfasten screws (2).
Remove trim (3).

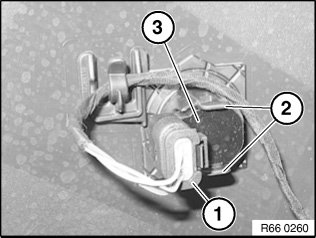

Unfasten plug connection (1) and disconnect. Unlock catches (2) and pull ultrasonic transducer (3) out of holder.

Installation:
Retaining tabs (2) must not be damaged.
Make sure ultrasonic sensor is securely seated.







Installation:

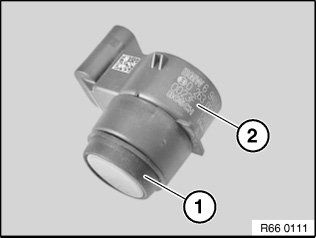

Make sure rubber ring (1) is correctly seated on ultrasonic sensor (2).
