65 13 195 Removing and Installing/Replacing Rear Treble Speaker (In Rear Shelf)



65 13 195 Removing And Installing/replacing Rear Treble Speaker (in Rear Shelf)







Installation:
- Remove rear mid-range speaker







Release screws.

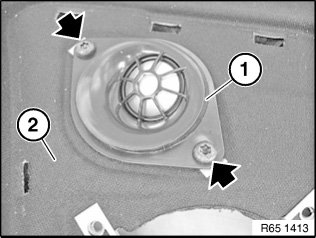

Remove treble speaker (1) from rear window shelf (2).
Feed out associated plug connection.
