65 13 188 Removing and Installing/Replacing Rear Mid-Range Speaker (In Rear Shelf)



65 13 188 Removing And Installing/replacing Rear Mid-range Speaker (in Rear Shelf)







Special tools required:
- 00 9 325

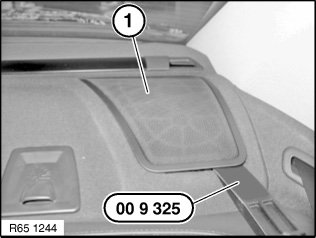

Pry out speaker trim (1) 00 9 325with special tool .







Installation
Retaining lugs on speaker trim (1) must not be damaged.

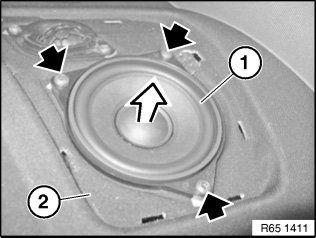

Release screws.
Remove mid-range speaker (1) in direction of arrow from storage shelf (2).

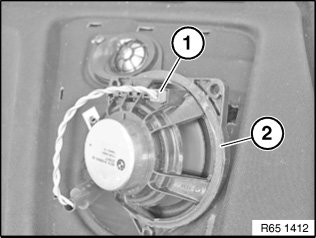

Disconnect plug connection (1).
Remove mid-range speaker (2).
