65 13 080 Removing and Installing/Replacing Speaker (Tweeter, Door At Rear)



65 13 080 Removing And Installing/replacing Speaker (tweeter, Door At Rear)







Necessary preliminary tasks:
- Remove rear door trim panel

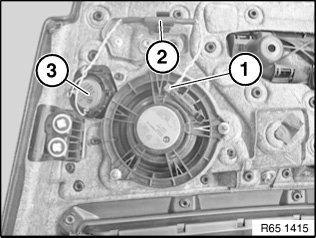

Disconnect plug connection (1).
Remove resistor (2) from holder.
Unclip speaker (3) from holder.
