65 12 051 Removing and Installing/Renewing Central Bass Speaker -Driver's Side- (Under Front Seat)

65 12 051 Removing And Installing/renewing Central Bass Speaker - Driver's Side- (under Front Seat)







Necessary preliminary work:
- Remove front seat
- Remove trim panel for door post

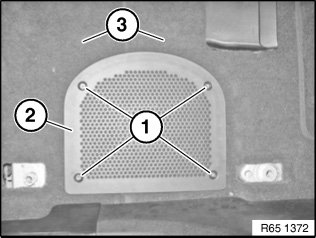

Release screws (1).
Remove cover (2).
Fold carpet (3) to one side.

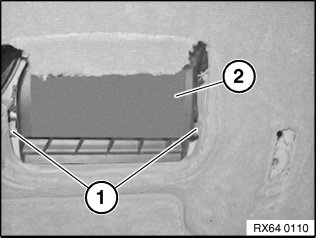

Release plastic nuts (1).

Installation note:
Ensure that air duct (2) is correctly seated.







Unlock and disconnect plug connections (1) on electric auxiliary heater (2).
Unlock and disconnect plug connection (3) on temperature sensor.
Completely feed out air duct (4).

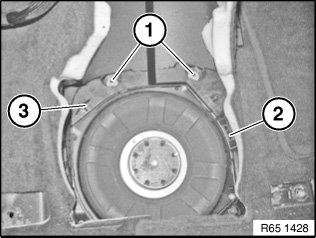

Unfasten plug connection (2) and disconnect.
Unscrew nuts (1).
Feed out central bass support (3).
