65 12 265 Removing and Installing/Replacing DVD Player In Rear Console

65 12 265 Removing And Installing/renewing DVD Player In Rear Console







IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection).







NOTE: Comply with notes and instructions on handling optical fibres.







Necessary preliminary tasks:
- Clamp off battery negative lead
- Remove centre armrest storage compartment

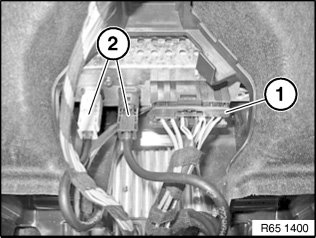

Unlock plug connections (1) and (2) and disconnect.

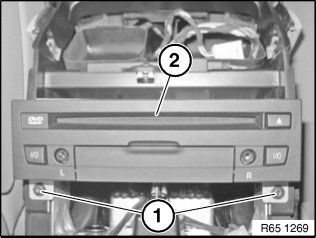

Release screws (1).
Remove DVD player (2).







Replacement:
Carry out vehicle programming/encoding.
