66 53 180 Removing and Installing (Replacing) Control Unit For Reversing Camera

66 53 180 Removing And Installing (replacing) Control Unit For Reversing Camera







IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection).







Necessary preliminary work:

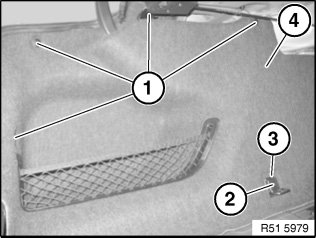

- Remove the cover from the top tail panel







Lever out expanding rivets (1).
Release screw (2).
Remove lashing eye (3).
Carefully press luggage compartment wheel arch panel (4) to one side.

Installation note:
Make sure luggage compartment wheel arch panel (4) and rubber seal are correctly fitted.

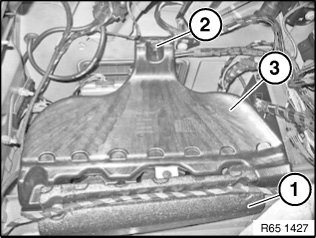

Pull off wiring harness guide (1) in an upward direction.
Lift out expanding rivet (2).
Remove wheel arch support (3) by lifting upwards.

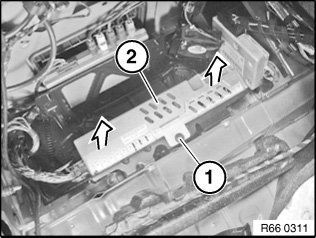

Release screw (1).
Remove amplifier (2) in direction of arrow.







Release nuts (2) and screws (3).
Remove TRSV control unit (1) including holder.







Unlock plug connections (1) and disconnect.

Replacement:
Unfasten screws (2).
Remove TRSV control unit (3) from holder.







Replacement:
- Carry out programming/encoding.
- Calibrate reversing camera
