67 62 020 Removing and Installing/Replacing Flat Motor For Rear Left or Right Power Window Regulator

67 62 020 Removing And Installing/replacing Flat Motor For Rear Left Or Right Power Window Regulator







Necessary preliminary work:
- Remove rear power window regulator

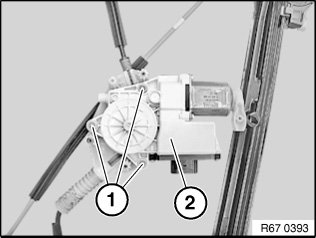

Release screws (1) and detach flat motor (2) from power window regulator.

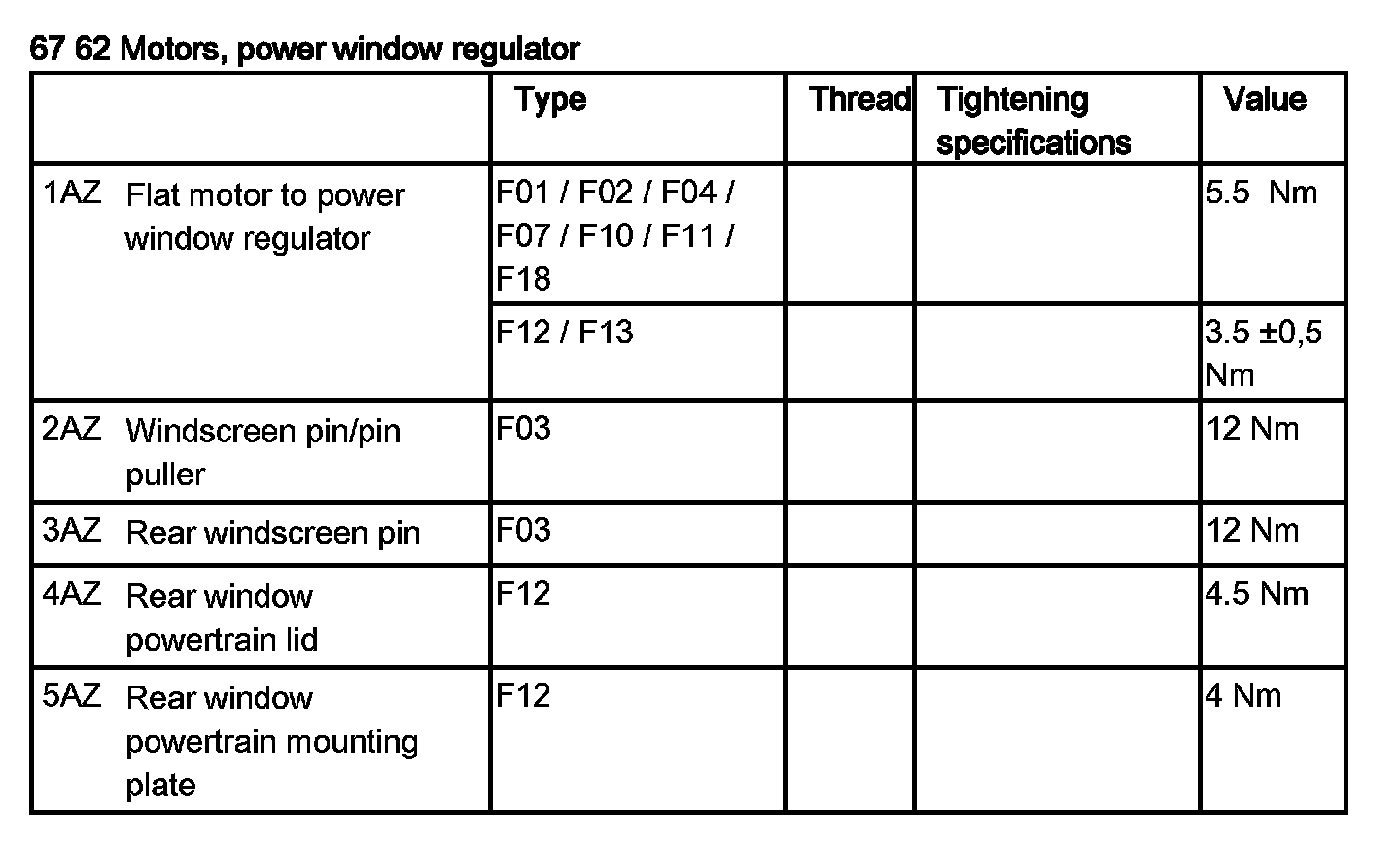

Tightening torque 67 62 1AZ.

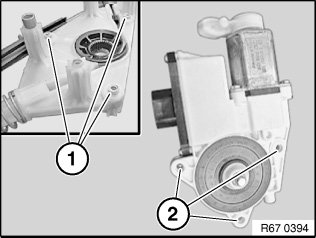

IMPORTANT: For stress-free installation of the flat motor, fit journal (1) in guide (2).







After installation:
An initialisation must be carried out in order to activate anti-trap mechanism.

Read and comply with notes on initialisation of power window regulator.
