22 32 070 Removing and Installing/Replacing the Transmission Bearing Support

22 32 070 Removing and installing/replacing the transmission bearing support (N55,N57) all-wheel drive vehicle







Necessary preliminary tasks:
- Remove rear underbody protection and retaining plate on left.
- Release the front propeller shaft from the transfer box

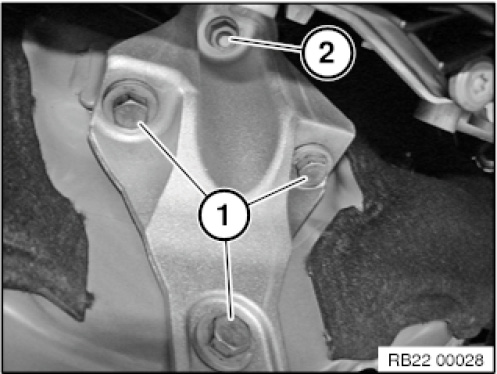

Release screws (1) and nuts (2).
Remove transmission support bracket
Tightening torque 22 32 9/10AZ.
