22 32 055 Removing and Installing/Replacing Transmission Bearing Block

22 32 055 Removing and installing/replacing transmission bearing block (N55,N57) all-wheel drive vehicle

Special tools required:







Necessary preliminary tasks:
- Remove transmission support bracket
- Release the cross member from the body
- Slightly lower the transmission

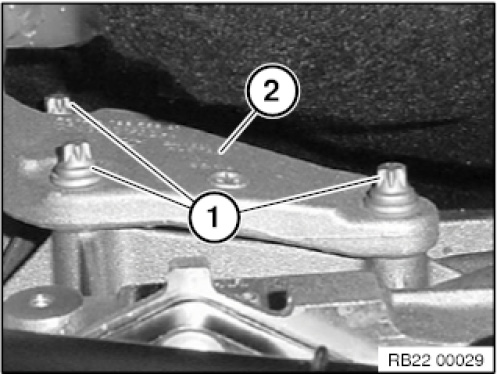

Release screws (1) with special tool 51 3 310.
Remove transmission mounting bracket (2).

Installation note:
Tightening torque 22 32 7AZ.
