84 21 535 Removing and Installing (Replacing) Hands-Free Charging Electronics (Optional Extra SA644)

84 21 535 Removing And Installing (replacing) Hands-free Charging Electronics (optional Extra SA644)







IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection) .







NOTE: Comply with notes and instructions on handling optical fibres .







Necessary preliminary tasks:
- Clamp off battery negative lead
- If necessary, remove amplifier

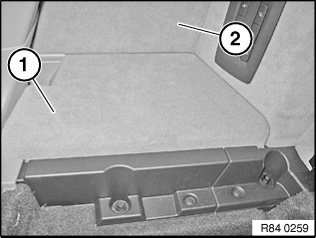

Remove left luggage compartment trim panel (1).

Remove luggage compartment flap (2).

Installation:
Make sure cover (1) and flap (2) are correctly seated.

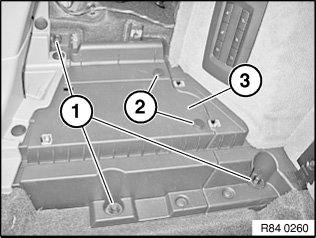

Unscrew nuts (1).

Lift out expanding rivets (2).

Remove left shelf support (3).

Installation:
Expanding rivets (2) must not be damaged.

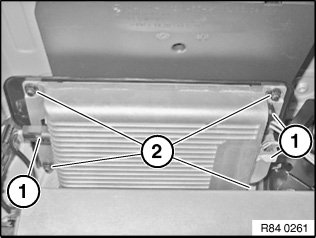

Unlock plug connections (1) and disconnect.

Unscrew nuts (2).

Remove hands-free charging electronics (3).







Replacement:
- Carry out vehicle programming/coding
- If necessary, log mobile phone on to vehicle
