65 77 740 Removing and Installing (Replacing) Left Front Door Sensor

65 77 740 Removing And Installing (replacing) Left Front Door Sensor







WARNING:
Note airbag safety regulations.
Incorrect handling can activate airbag and cause injury.







Necessary preliminary tasks:
- Remove sound insulation in front door

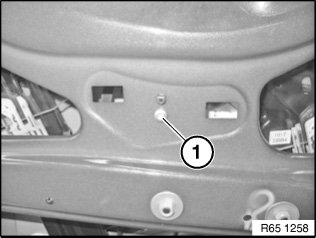

Release screw (1).

Tightening torque 65 77 4AZ.

Feed out sensor towards bottom.

Unlock associated plug connection and disconnect.

Remove sensor.







Installation note:

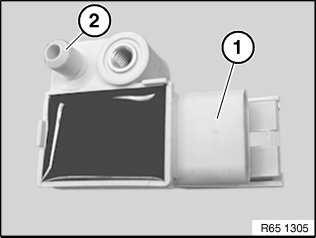

Make sure front door sensor (1) is in correct installation position.

Guide lug (2) must be correctly seated in corresponding mounting on front door.
