66 31 001 Adjusting ACC Sensor (FRR Sensor)

66 31 001 Adjusting ACC Sensor (FRR Sensor)







Special tools required:
- 36 1 100







NOTE: This document applies to the entire F series with the new ACC sensor (FRR - Full Range Radar).







Special tool required:
Active Cruise Control ACC adjusting device, complete.

Order number: 81 10 0 021 292

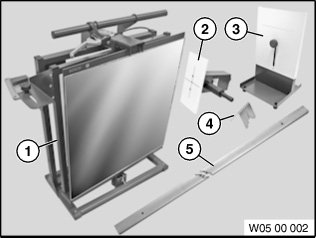

Consisting of:
1. Mirror, complete
2. Wheel laser
3. Slotted diaphragm
4. Control holder (for initial installation of rail)
5. Rail
6. Setup and Operating Instructions (not shown)

NOTE: A mounting which is not included in the delivery specification is required to support the wheel laser. Use either the quick-action clamp from the existing KDS or ACC wheel holder (36 1 100).







NOTE:
- Follow notes for ACC adjusting device.







NOTE:
To set the ACC sensor, connect the BMW diagnosis system and fit the ACC adjusting device.

Select ACC calibration in diagnosis.
- Service function

- Chassis and suspension

- ACC cruise control

- Start-up of ACC sensor

Handle ACC adjusting device in accordance with mounting and Owner's Handbook provided with device.







NOTE: Further information on the ACC adjusting device can be found in the BMW Workshop Equipment and Planning Documentation.
