Tire Pressure Module: Service and Repair

36 11 105 Removing and installing RDC (Tire Pressure Control) control unit





Important!
Read and comply with notes on protection against electrostatic damage (ESD protection).





Necessary preliminary tasks:
^ Remove spare wheel well panel at rear

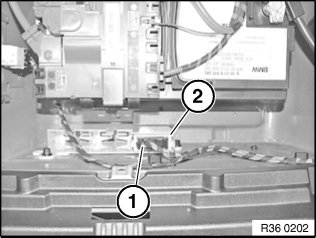

Disconnect plug connection (1).

Unlock equipment holder tabs.

Lift upward to pull out RDC control unit (2).








Replacement:
- Carry out programming/encoding
