37 14 525 Removing and Installing/Replacing Control Unit For Air Supply Unit

37 14 525 Removing and installing/replacing control unit for air supply system





Important!
Read and comply with notes on protection against electrostatic damage (ESD protection).





Necessary preliminary work:
^ Remove ignition key
^ Disconnect battery earth lead
^ Remove rear right luggage compartment trim panel

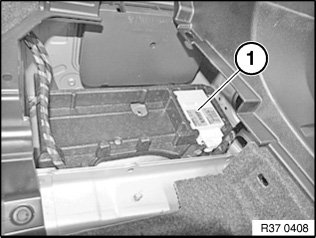

F07:
Unfasten connector connection and disconnect.

Remove control unit (1).

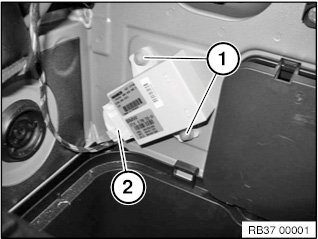

F11:
Loosen the nuts (1), disconnect the connector (2) and remove the control unit.





After installation:
^ Replacement only: Carry out programming/encoding
^ Replacement only: Carry out ride height adjustment
