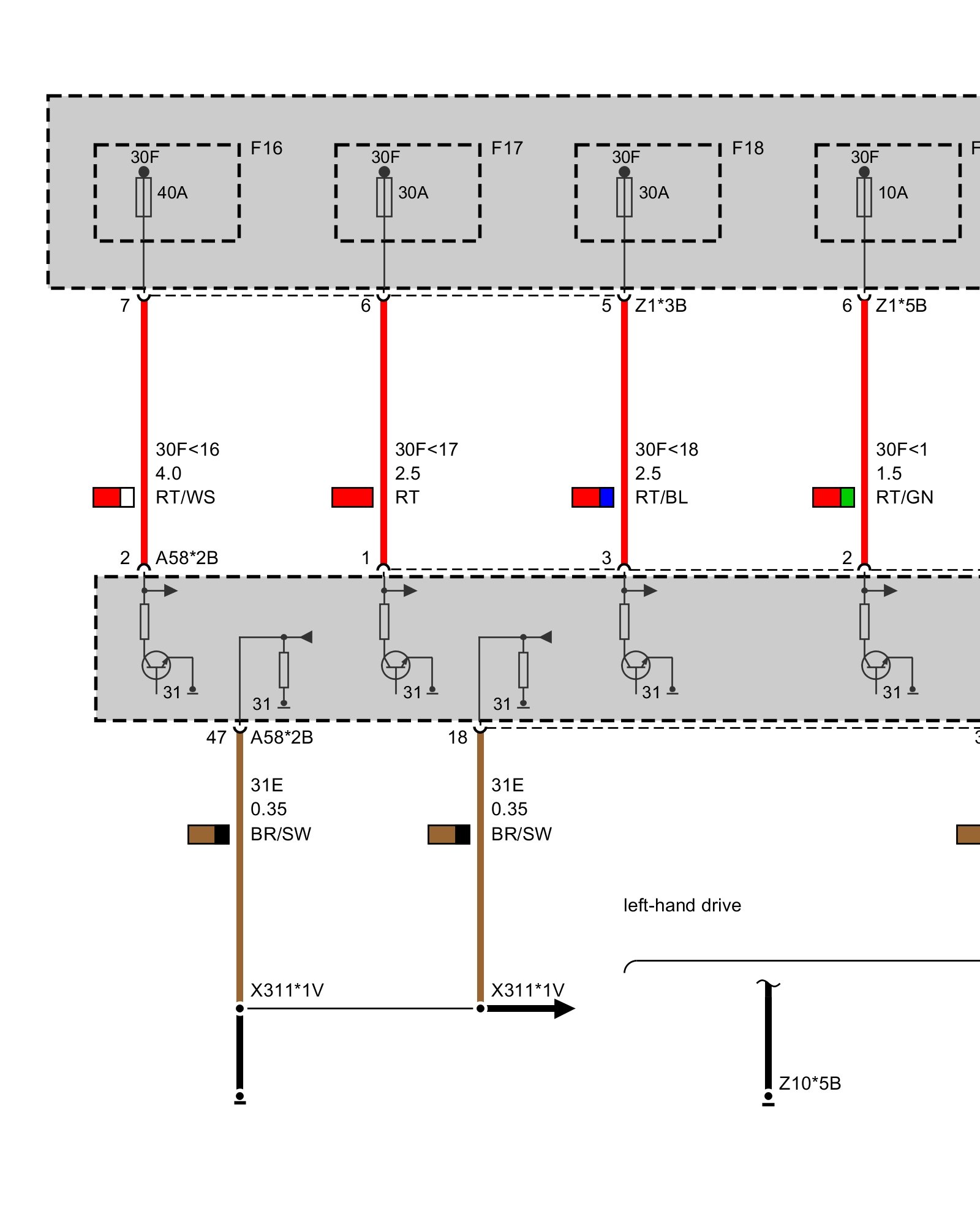

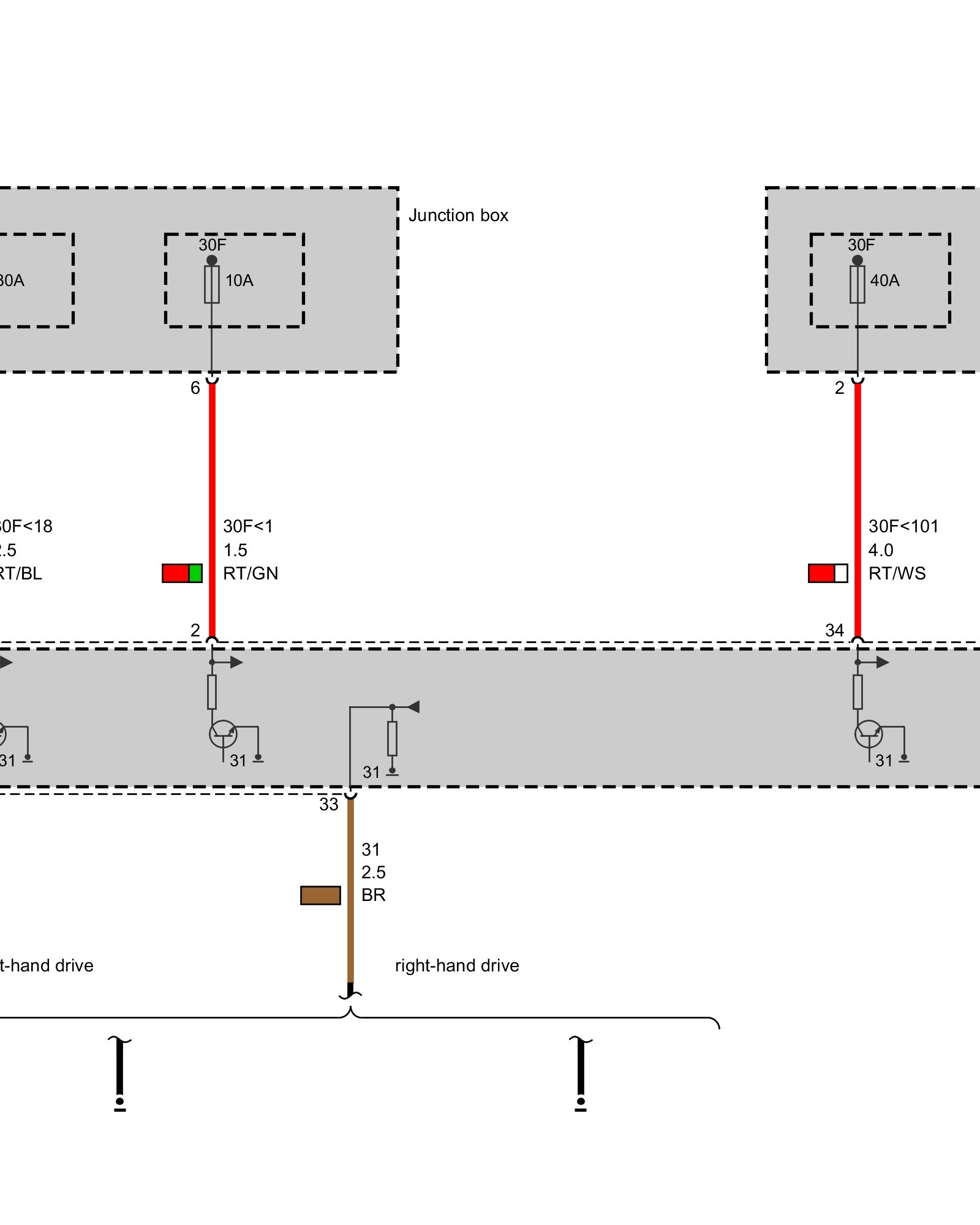

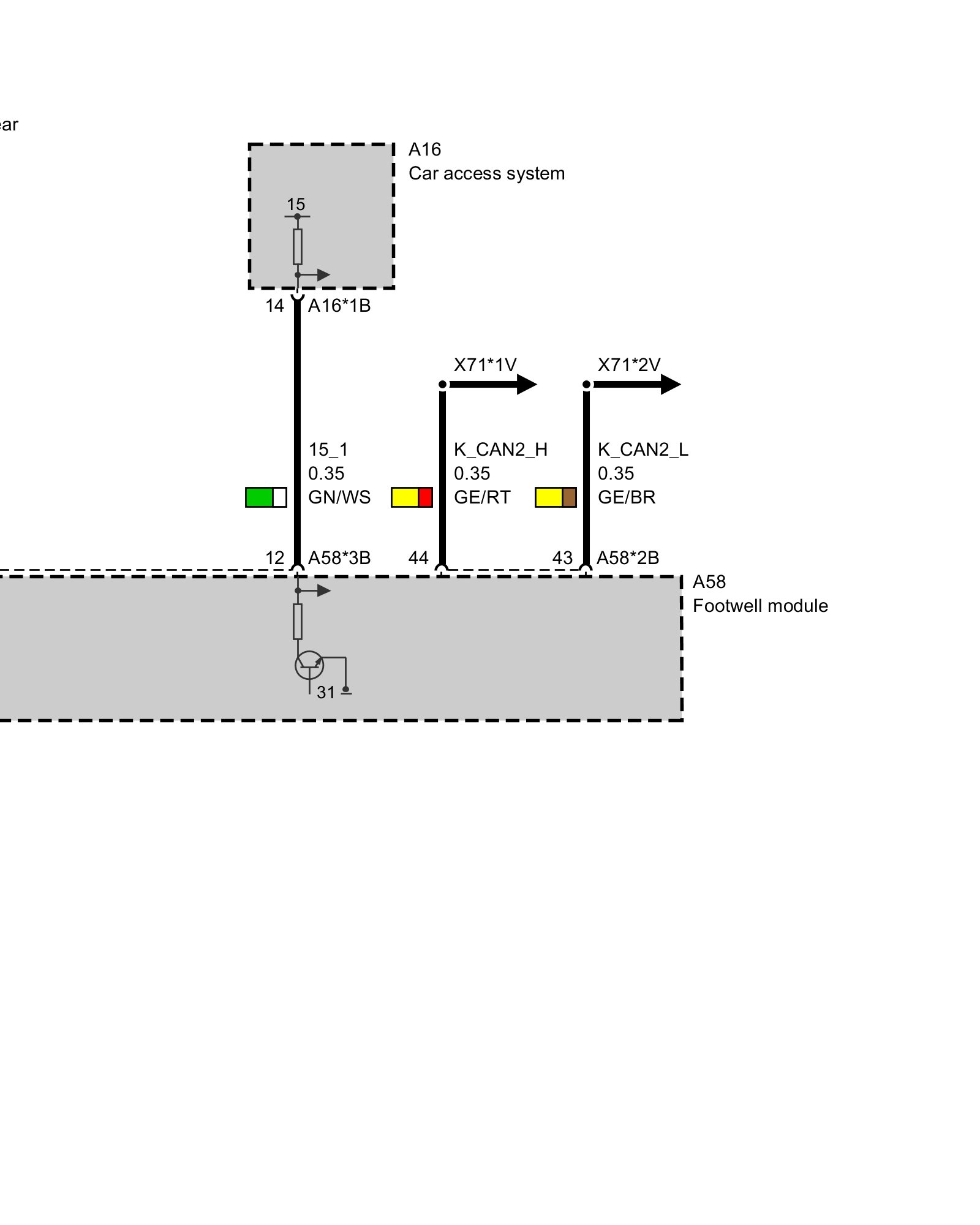

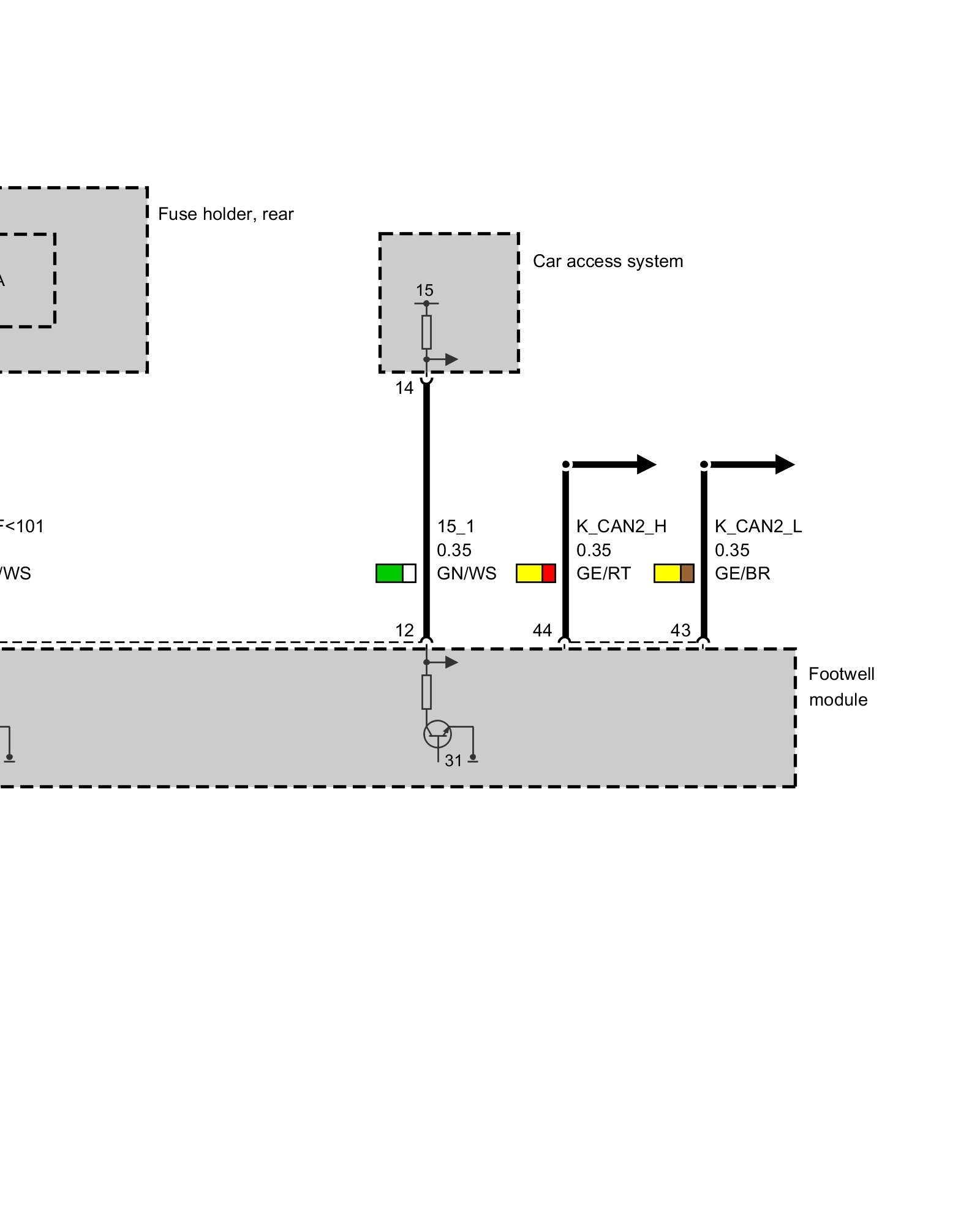

Power Supply, Footwell Module
Power Supply, Footwell Module
Power Supply, Footwell Module

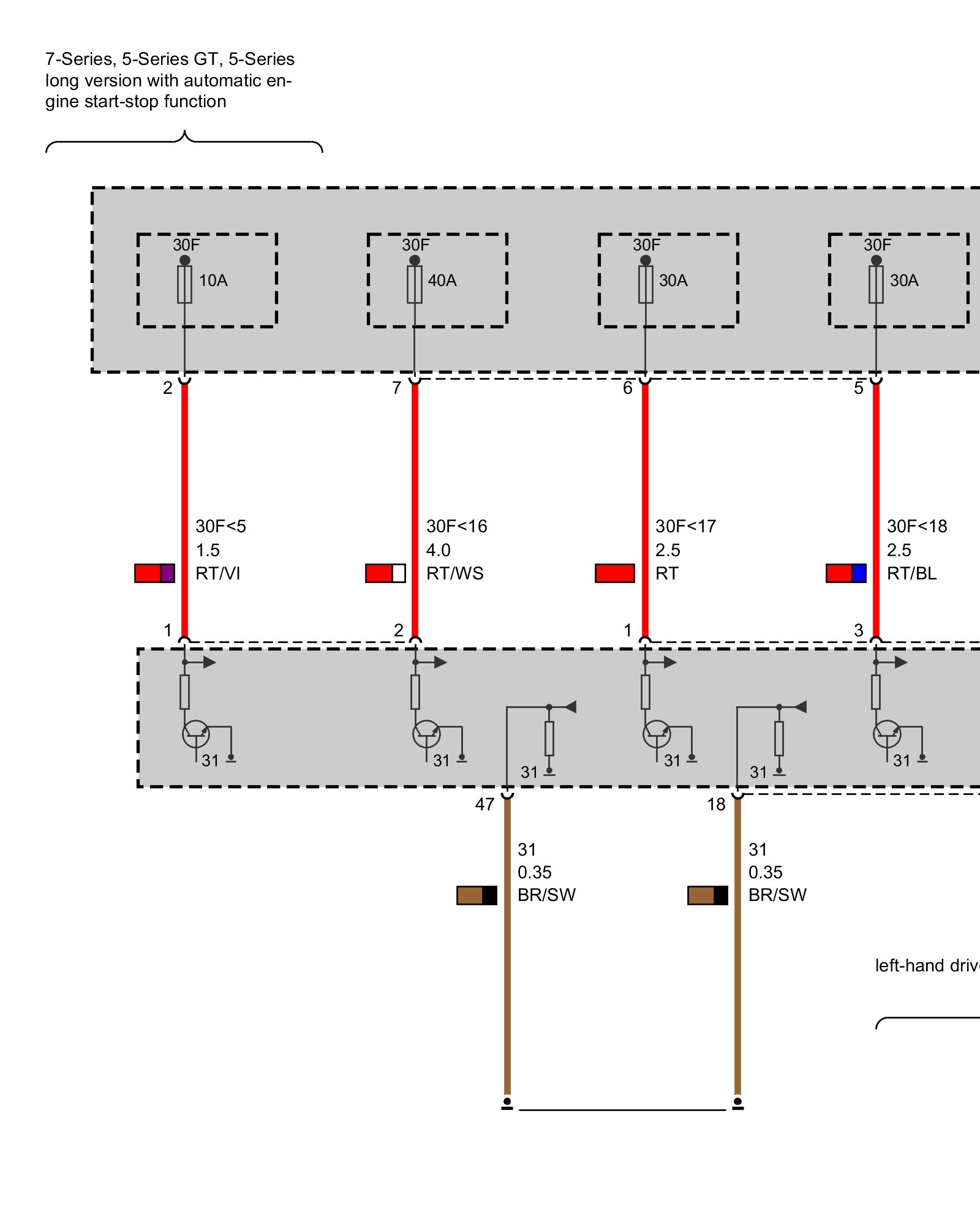

Long version with automatic engine start-stop function
