63 13 200 Removing and Installing/Replacing Front Left or Right Auxiliary Turn Indicator

63 13 200 Removing And Installing/Replacing Front Left Or Right Auxiliary Direction Indicator







Special tools required:
- 00 9 341







IMPORTANT: Follow instructions for handling light bulbs (exterior lights) .

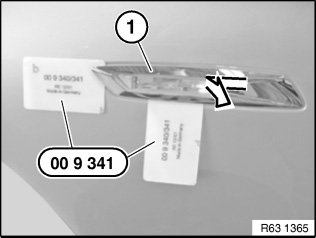

Carefully unlock front auxiliary turn indicator (1) using special tools 00 9 341 .

Remove front auxiliary direction indicator (1) in direction of arrow.







Unfasten plug connection (1) and disconnect. Remove front auxiliary direction indicator (2).

Installation:
Tension springs (3) and retaining lugs (4) must not be damaged.
