63 17 070 Removing and Installing Left Front Fog Light

63 17 070 Removing And Installing Left Front Fog Light







NOTE: The time value of this job does not include adjustment of the fog lights.







Necessary preliminary work:
- Remove ornamental grille in bumper trim

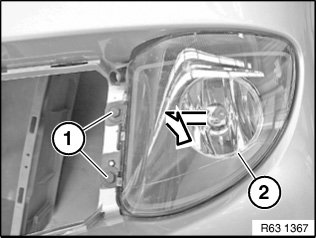

Release screws (1).

Tightening torque 63 12 7AZ.

Remove fog light (2) in direction of arrow







IMPORTANT: Follow instructions for handling light bulbs (exterior lights)

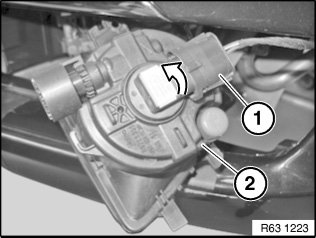

Disconnect plug connection (1) on fog light (2).

Remove fog light (2).

Replacement:
- If necessary, turn bulb holder in direction of arrow and remove from fog light (2).

Note bulb type
