63 25 000 Removing and Installing/Replacing Auxiliary Brake Light

63 25 000 Removing And Installing/Replacing Auxiliary Brake Light







Necessary preliminary tasks :
- Remove trim for rear lid at top

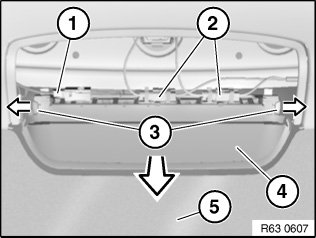

Unfasten plug connection (1) and disconnect.

If necessary, unclip plug connections (2) on supplementary brake light (4).

Unlock slide (3) on both sides and remove supplementary brake light (4) in direction of arrow from rear window (5).

Installation:
Make sure supplementary brake light (4) is correctly positioned in rear window (5).
