13 71 150 Removing Clean Air Pipe

13 71 150 REMOVING CLEAN AIR PIPE (N55)







Necessary preliminary work:
- Remove ignition coil cover







Release clamps (1).
Tightening torque 13 71 3AZ.
Unlock plug (2) on air-mass sensor and disconnect.
Disconnect clean air pipe (3) from rubber mount at top and remove.

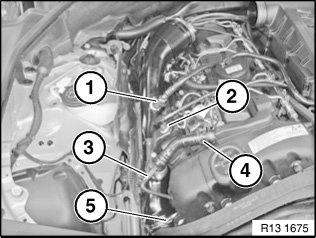

Unlock tank ventilation line (1) and disconnect.
Release screw (2).
Tightening torque 13 71 5AZ.
Unlock plug (3) from heating element and disconnect.
Do not loosen the vent hose at cylinder head cover (4). Risk of damage to the cylinder head cover.
Release screws at clean air pipe and disconnect vent hose from clean air pipe.
Release clamp (5).
Tightening torque 13 71 7AZ.
Remove clean air pipe.







Assemble engine.
