13 .. ... Removing Intake Duct

13 .. ... REMOVING INTAKE DUCT (N55)







Necessary preliminary work:
- Remove left trailing link

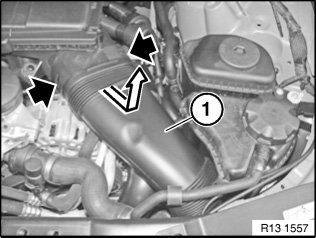

Press in catches on intake silencer housing.
Feed out intake duct (1) towards top.







Press in catch (1).
Detach intake duct (2) towards rear and remove.
