Securing Engine In Installation Position

11 00 670 Securing engine in installation position (F07 - N55) all-wheel drive

Special tools required:







WARNING:
Danger of injury.
Observe following instructions relating to special tool:
1. Prior to each use, check the special tools for defects, modifications and operational reliability.
2. Damaged/modified special tools must not be used.
3. No changes or modifications may be made to the special tools.
4. Keep special tools dry, clean and free of grease.







NOTE:
- Numbering system for special tools has been re-encoded.

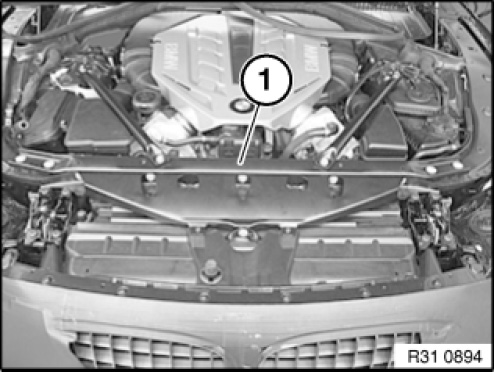

IMPORTANT: Special tool 00 6 000 must not be fitted when cross-member (1) is installed.







Necessary preliminary work:
- Secure engine bonnet/hood in service position
- Remove assembly underside protection at front and rear
- Remove panel for engine hood/bonnet at side
- Remove acoustic cover

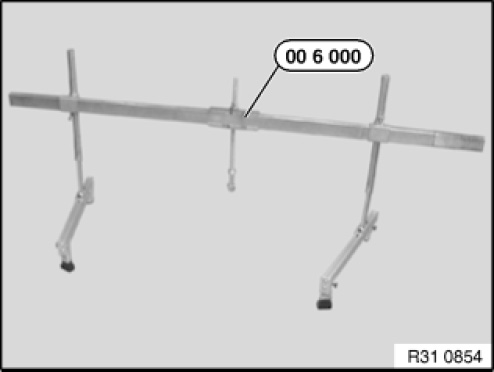

Assemble transverse member 00 6 000 with special tools 00 6 002 00 6 004, 00 6 010, 00 6 050.

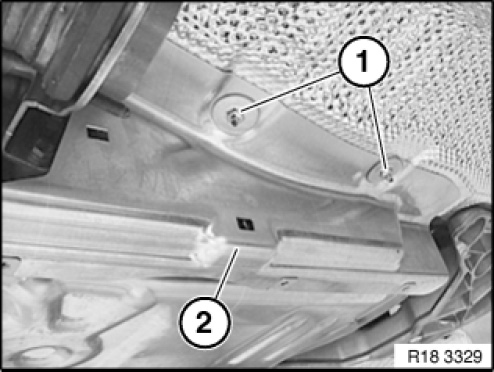

Undo bolts (1) and detach heat shield (2) from gearbox.







Release nut (1) for gearbox rubber mount.







Graphic shows: N63 engine

NOTE:

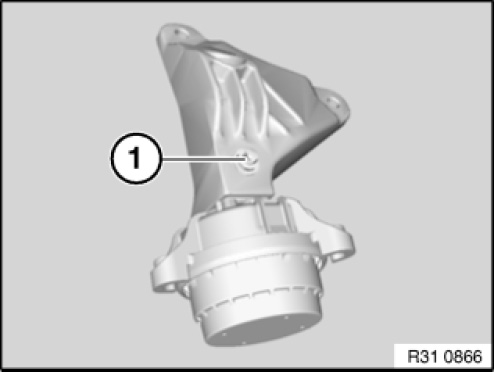

Contact points (1) for special tool 00 6 050 are pictured.
Position transverse member 00 6 000 with a 2nd person helping on contact points (1).







Screw towing hook (1) into engine block.

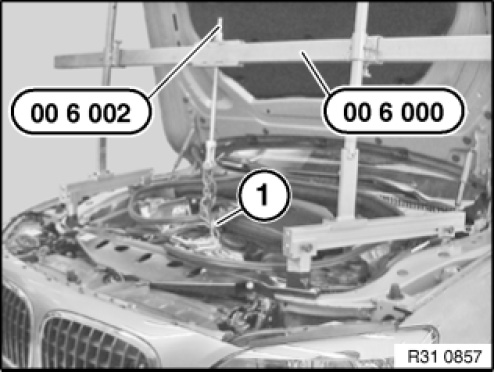

Align transverse member so that spindle 00 6 002 is correctly positioned over towing hook.
Secure suitable chain to spindle 00 6 002 and suspend from towing hook (1).







IMPORTANT:
Avoid a change of engine position in the transverse or longitudinal direction.
Always make sure there is sufficient clearance between the engine (or its add-on parts) and the body.







WARNING:
Danger of injury.
Tighten down all screws and nuts on cross-member 00 6 000.

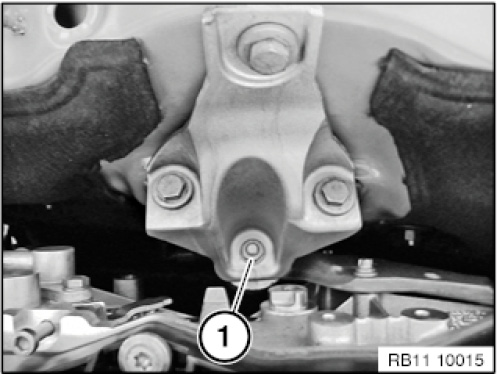

Undo the bolt (1) on the right-hand engine mount.

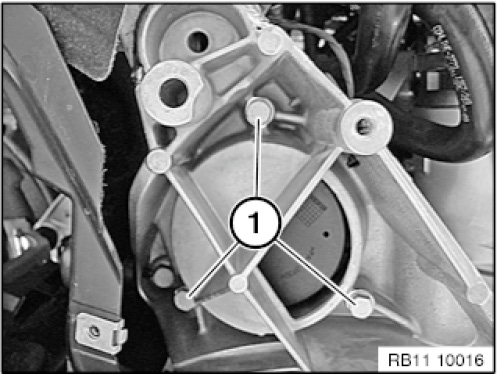

Release bolts (1) from bottom left engine mount.
Raise engine approx. 10 mm with cross-member.

IMPORTANT:
Observe installation note.
To ensure play between engine mount and engine support arm, lower the engine completely before tightening the screw connection (engine mount/engine support arm).

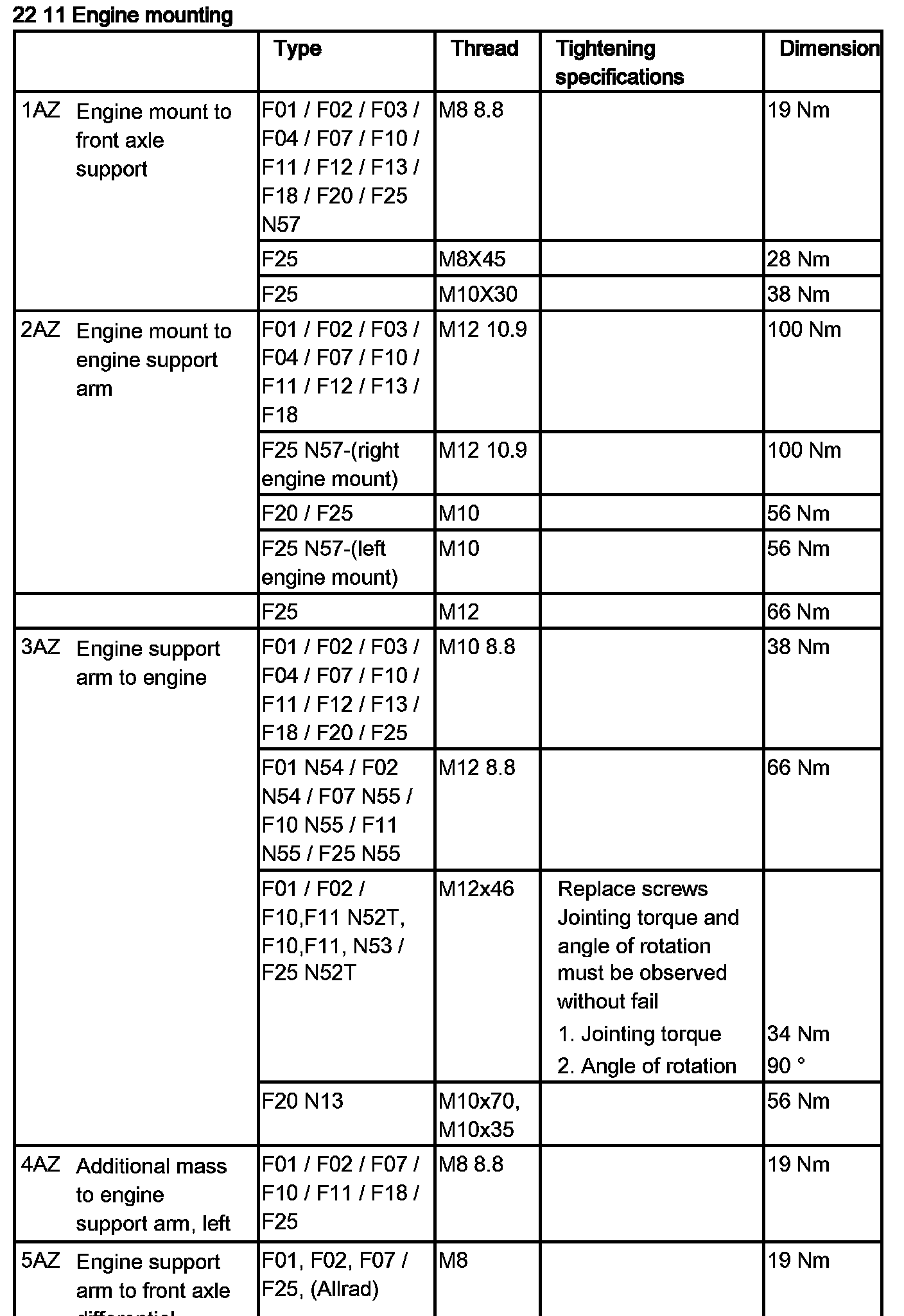

Tightening torque 22 11 2AZ.
