11 00 ... Mounting Engine on Assembly Stand

11 00 ... Mounting engine on assembly stand (N55)





Special tools required:
^ 00 2 300
^ 11 8 541
^ 11 8 542





Important!
Aluminum screws/bolts must be replaced each time they are released.
Aluminum screws/bolts are permitted with and without color coding (blue).
For reliable identification:
Aluminum screws/bolts are not magnetic.
Jointing torque and angle of rotation must be observed without fail (risk of damage).

Necessary preliminary tasks:
^ Remove engine

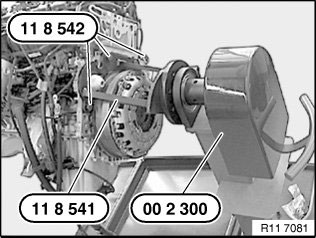

Use special tool 11 8 541 to mount engine on special tool 00 2 300.

Mount engine or engine block with special tool 11 8 542 on 11 8 541.
