FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
BMW
>>
2011
>>
535i xDrive GT AWD (F07) L6-3.0L Turbo (N55)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Information Bus
>>
Function Diagrams
>>

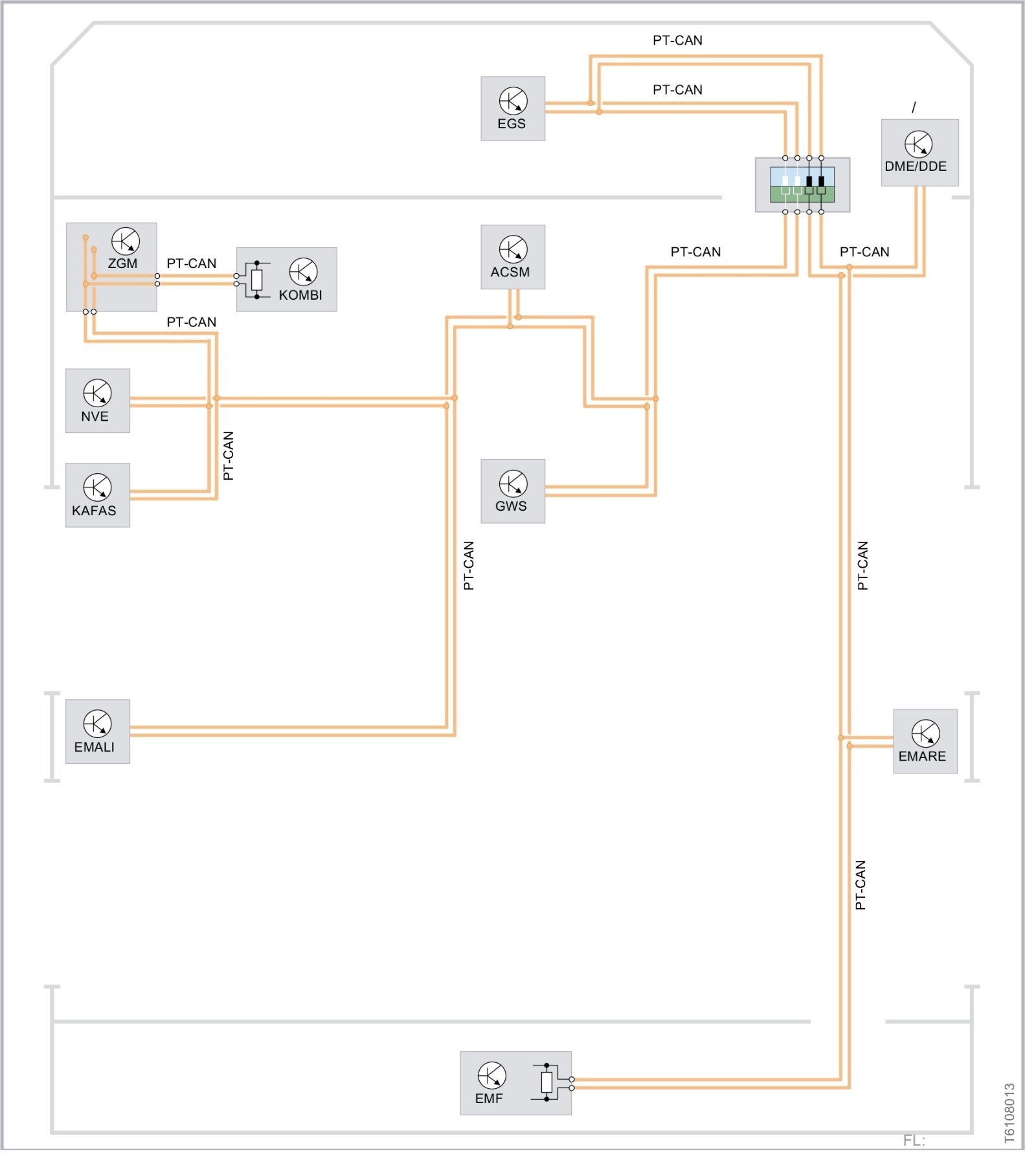

PT-CAN Bus
PT-CAN Bus
PT-CAN Bus
