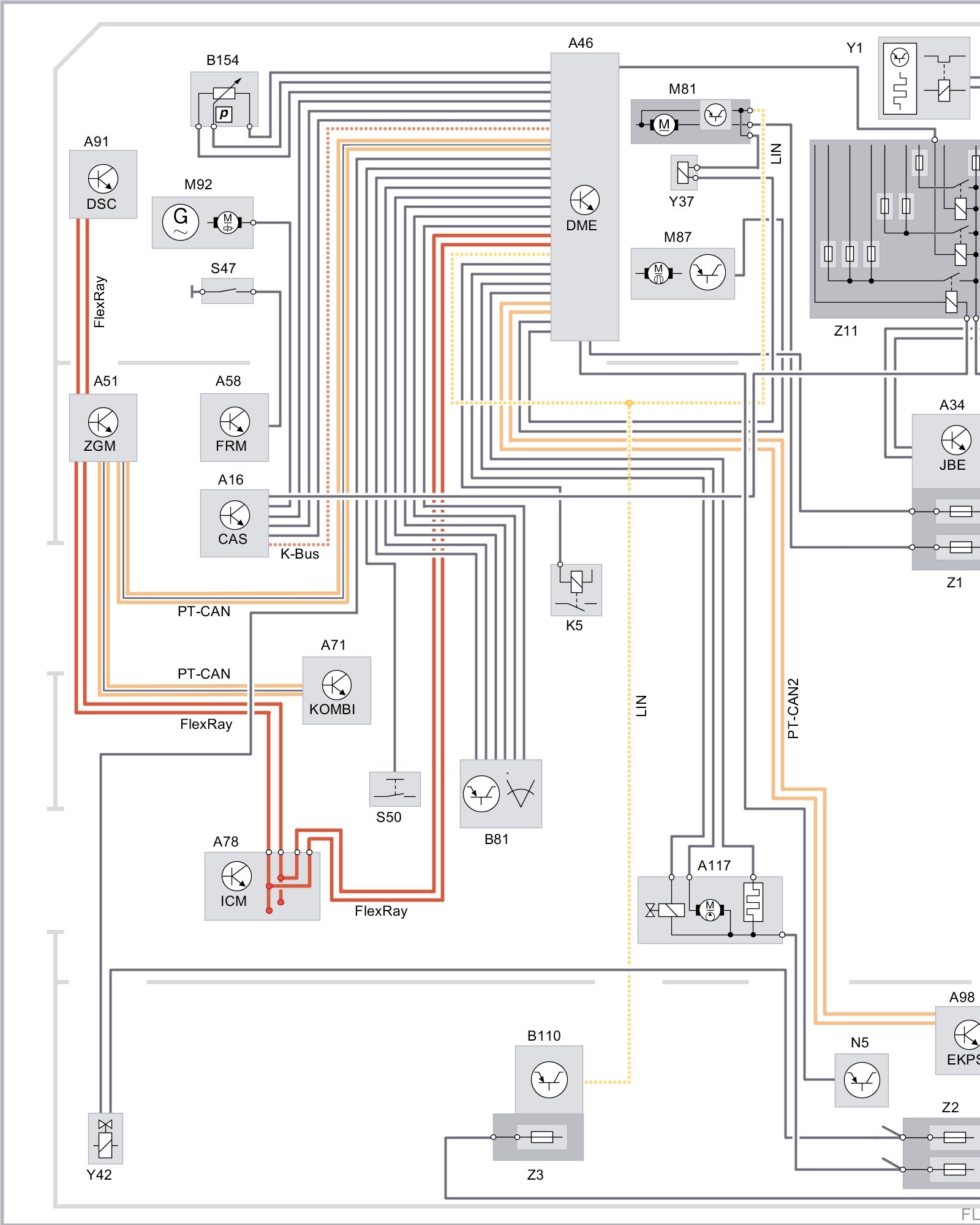

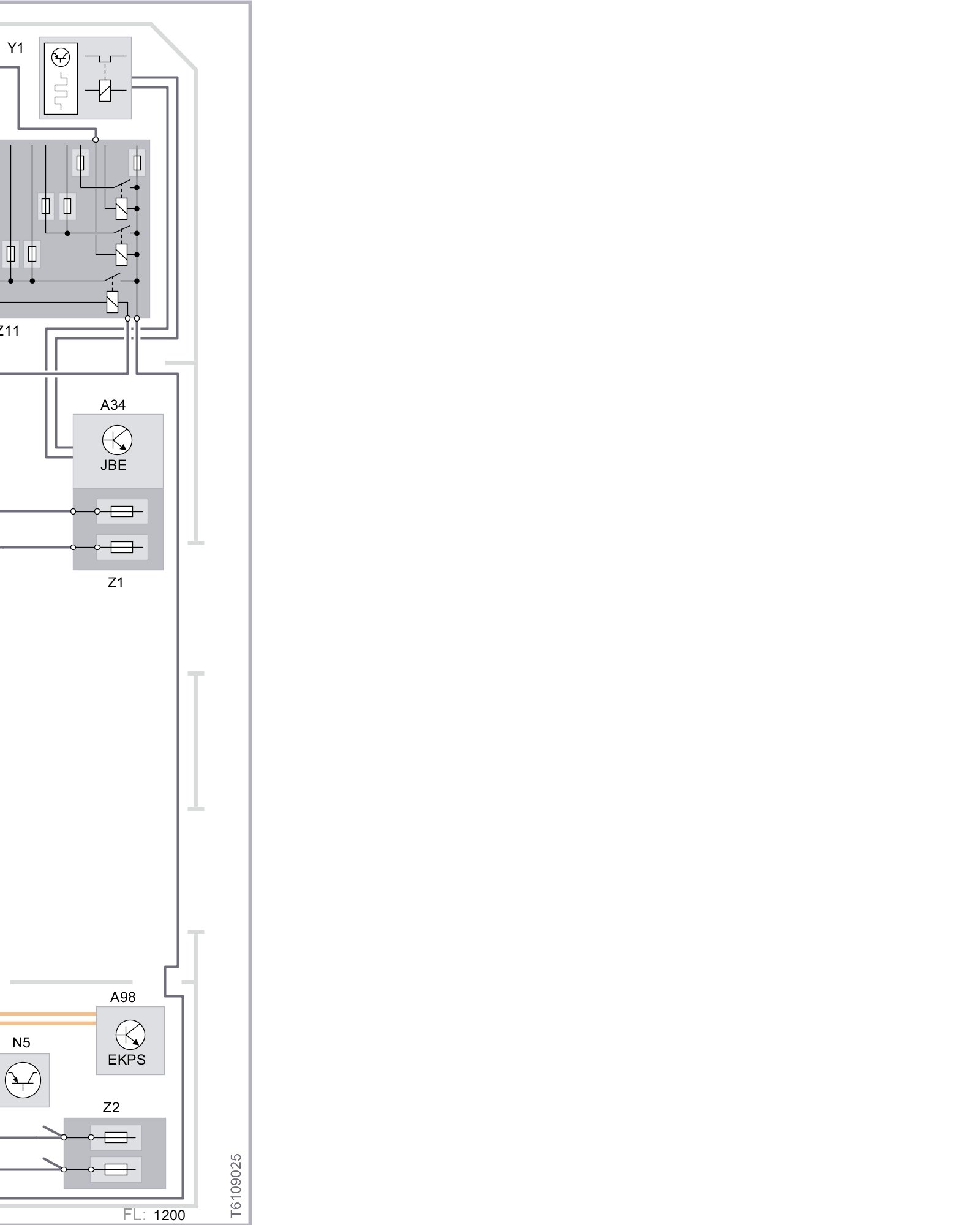

Engine Interface N52, Technical Update and N55 With Power Distribution Box In Engine Compartment



Engine Interface N52, Technical Update And N55 With Power Distribution Box In Engine Compartment
