A93*2B
>>
A93 Driver's Seat Module (Lumbar Support, Driver/Passenger With Active Seat For Driver/Passenger)
A93 Driver's Seat Module (Lumbar Support, Driver/Passenger With Active Seat For Driver/Passenger)

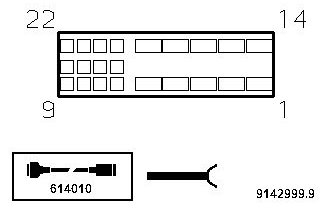

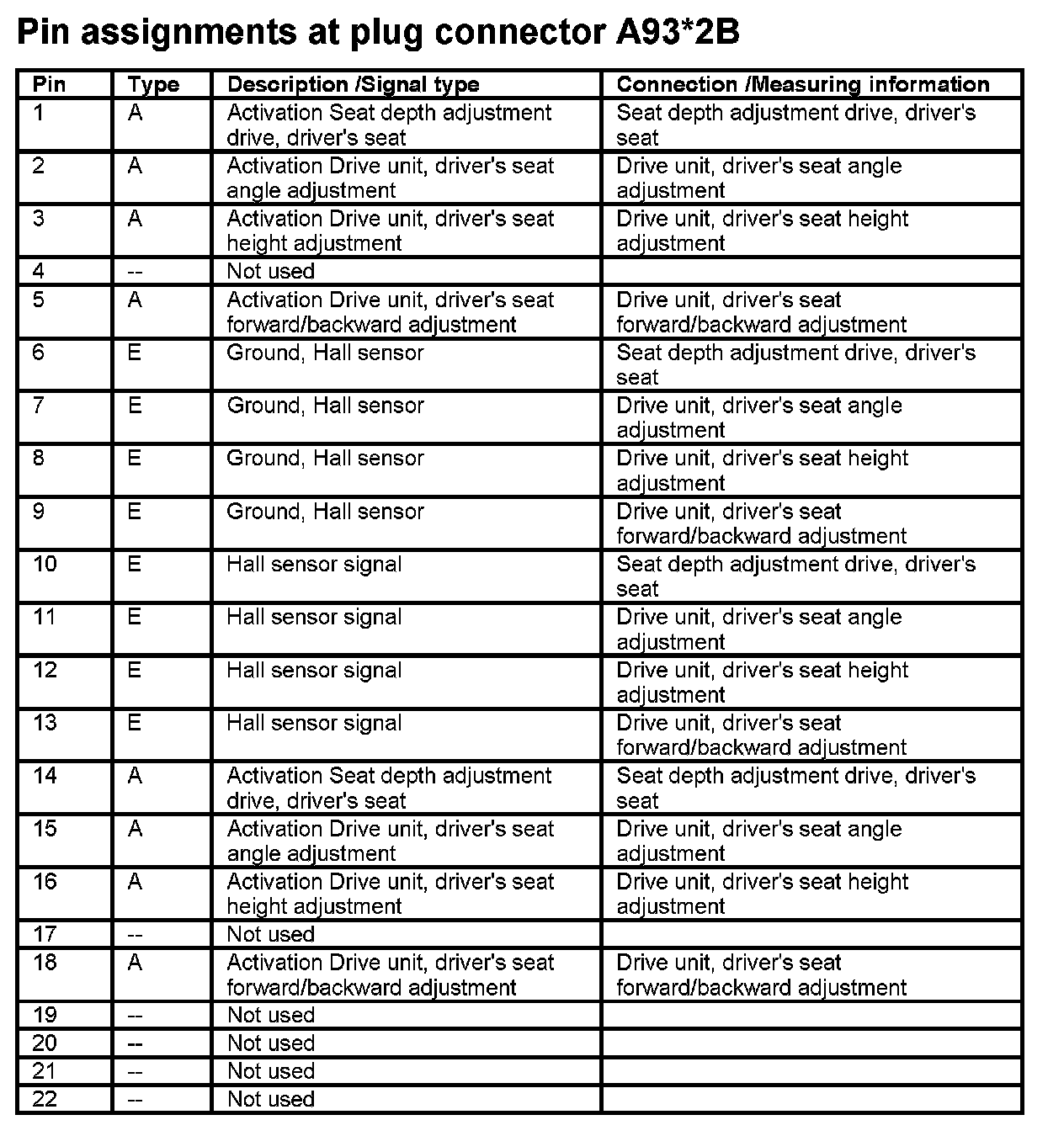

A93*2B
A93 Driver's Seat Module
