535i xDrive GT AWD (F07) L6-3.0L Turbo (N55)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connectors From A...
>>

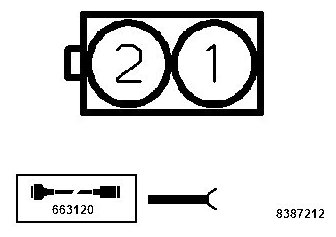

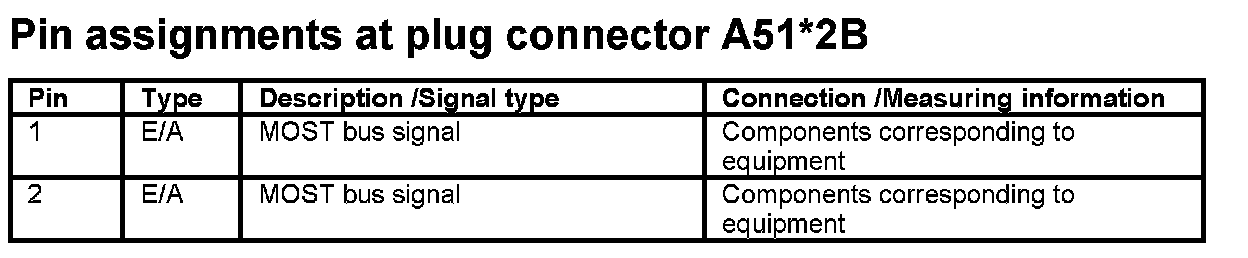

A51*2B
>>
A51 Central Gateway Module (With Active Steering)
A51 Central Gateway Module (With Active Steering)
A51*2B
A51 Central Gateway Module
