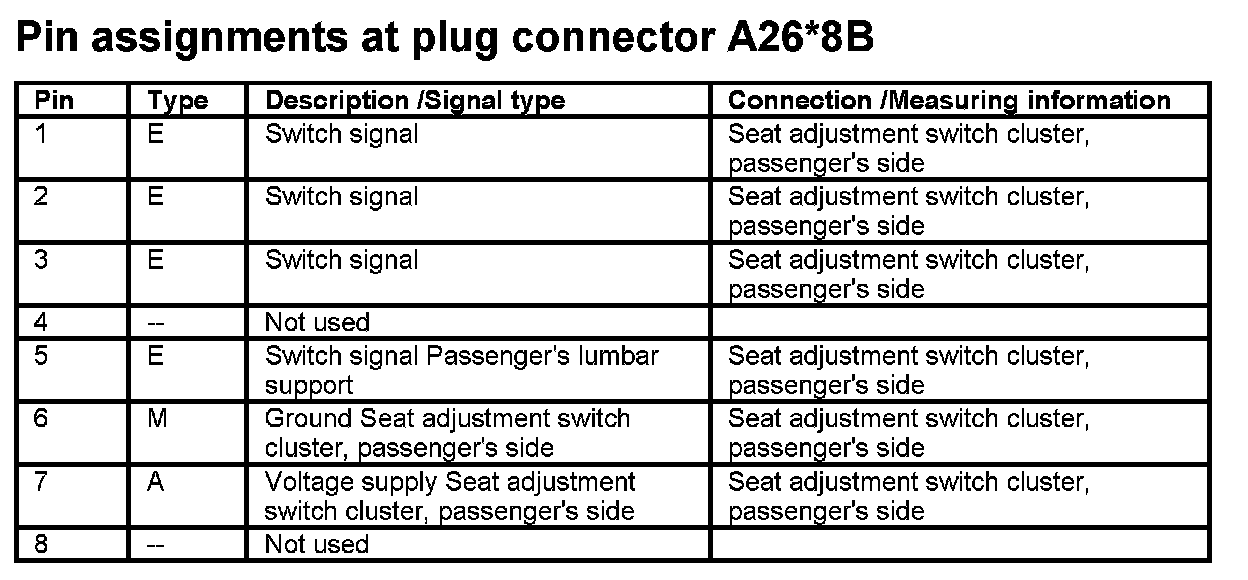

A26*8B
>>
A26 Passenger's Seat Module (Without Lumbar Support, Driver/Passenger)
A26 Passenger's Seat Module (Without Lumbar Support, Driver/Passenger)
A26*8B
A26 Passenger's Seat Module
