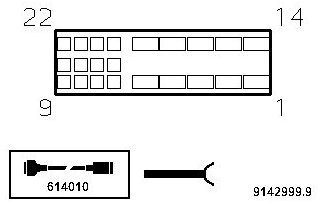

A18*2B
>>

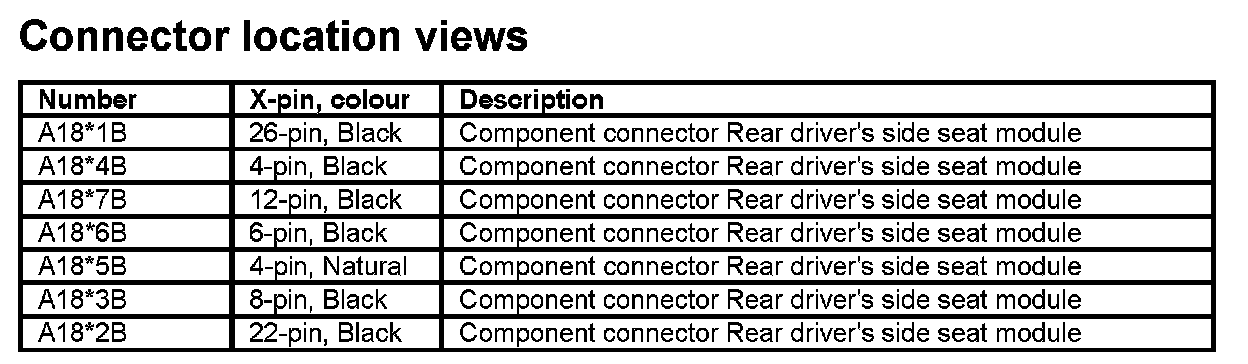

A18 Rear Driver's Side Seat Module (Massage Function In Rear Seat Backs)
A18 Rear Driver's Side Seat Module (Massage Function In Rear Seat Backs)

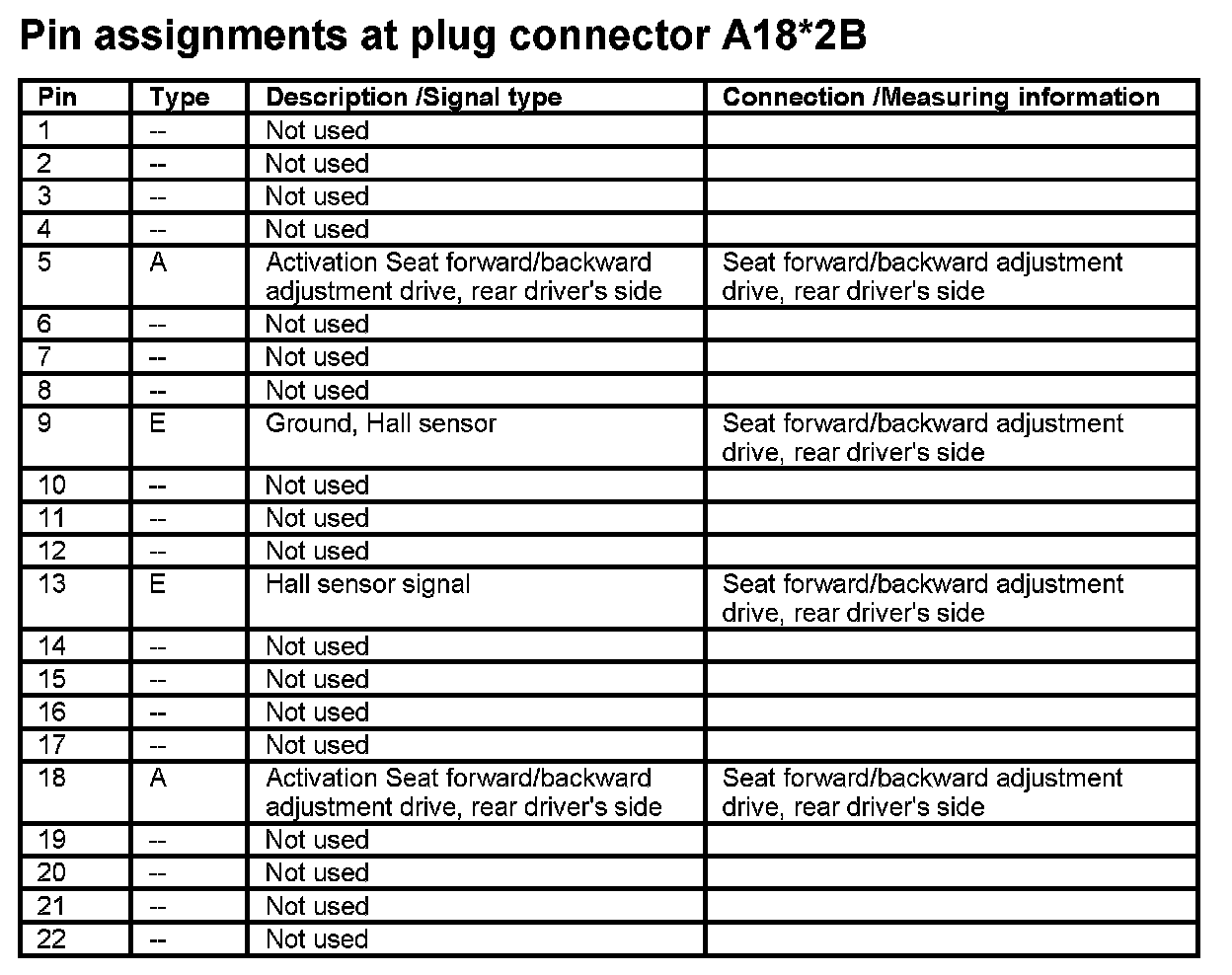

A18*2B
A18 Rear Driver's Side Seat Module
