52 25 ... Removing and Fitting Backrest Fan



52 25 ... Removing And Fitting Backrest Fan







Necessary preliminary work:
- Remove seat backrest frame on left or right

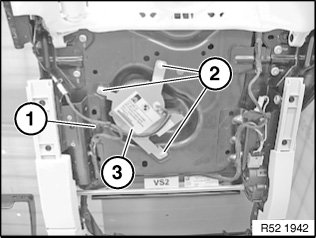

Unfasten plug connection (1) and disconnect.
Unfasten screws (2).
Tightening torque 52 25 06AZ.
Remove fan (3).
