52 26 117 Removing and Installing/Replacing Bowden Cable For Right Rear Seat Backrest

52 26 117 Removing And Installing/Replacing Bowden Cable For Right Rear Seat Backrest







Necessary preliminary tasks:
- Remove backrest cover on right

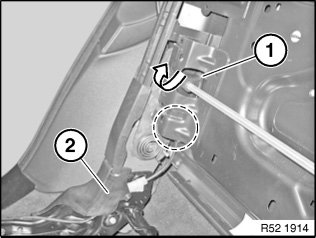

Unclip Bowden cable sleeve (1).
Unhook Bowden cable nipple (2).







Detach Bowden nipple (1).
Unclip Bowden cable sleeve in marked area.
Pull Bowden cable out through cover (2).
