Sunroof / Moonroof Drain: Service and Repair

54 10 300 Removing And Installing/Replacing Water Channel







Necessary preliminary work:
- Remove glass slide/tilt sunroof cover at front







The right side is removed in the same way as the left side.

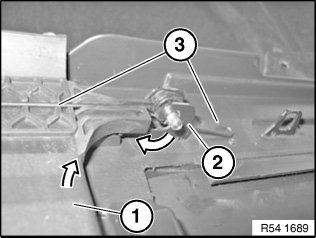

Turn water channel (1) upwards and remove from bearing (2) in direction of arrow.

Installation note:
Make sure spring (3) is in correct position.
Check water channel (1) for spring tension.
