54 13 046 Removing and Installing/Replacing Panorama Glass Roof Roller Sun Blind

54 13 046 Removing And Installing/Replacing Panorama Glass Roof Roller Sun Blind







Necessary preliminary tasks:
- Remove front section of panorama glass roof







NOTE:
- The right side is removed in the same way as the left side.
- Move roller sun blind into fully opened position.
- If drive is faulty: by way of emergency actuation with offset hexagon socket.

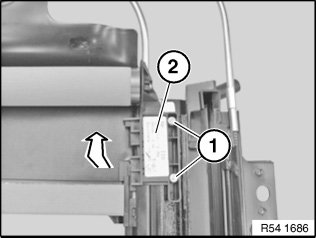

Release screws (1).
Pull holder (2) upwards out of guide and remove towards rear.







Installation:
Align arrows of holder and guide.
Tighten down screws.







Pull rising cable with guide tube (1) towards rear out of rail until roller sun blind bow (2) is exposed.
Remove roller sun blind bow (2) towards top from driver.







Installation:
Make sure rubber roller sun blind bow (1) is correctly seated on driver (1).
