54 10 260 Removing and Installing Front Part of Panorama Roof

54 10 260 Removing And Installing Front Part Of Panorama Roof







Special tools required:
- 54 1 110







Necessary preliminary tasks:
- Remove roofliner
- Remove front glass slide/tilt sunroof cover
- Completely open sliding roofliner
- Open tailgate

IMPORTANT: Two persons are required to help in removing the glass slide/tilt sunroof.







IMPORTANT:
- Risk of damage.
- Removed front section of panoramic sunroof must only be placed on a flat surface.
- Do not rest front section of panoramic sunroof on the cross members.
- Lay front section of panoramic sunroof broadly across side frame.







IMPORTANT: Read and comply with notes on protection against electrostatic discharge (ESD protection).

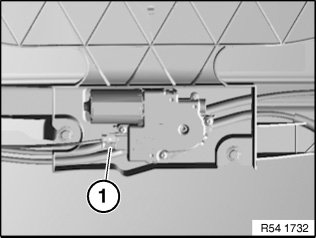

Unlock plug connection (1) from front drive and disconnect.

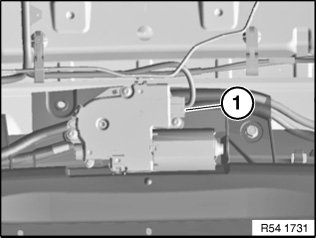

Unlock plug connection (1) on rear drive and disconnect.







IMPORTANT: Airbag lead and lead for Bluetooth aerial must not be damaged.

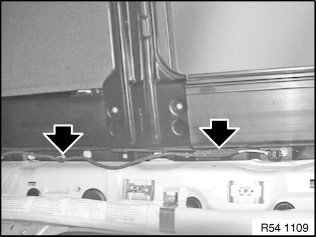

Detach all metal clips together with leads from slide/tilt sunroof frame on left and right.

Installation:
Route airbag lead and Bluetooth aerial lead so that they are not under tension or kinked.

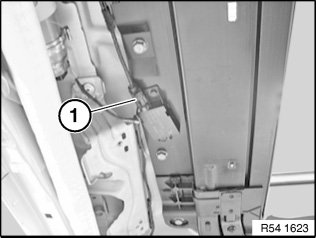

Unfasten and unplug connector (1) from Bluetooth aerial.







- Detach water drain hoses (1)

NOTE: Check hoses for damage and moisten with water before fitting

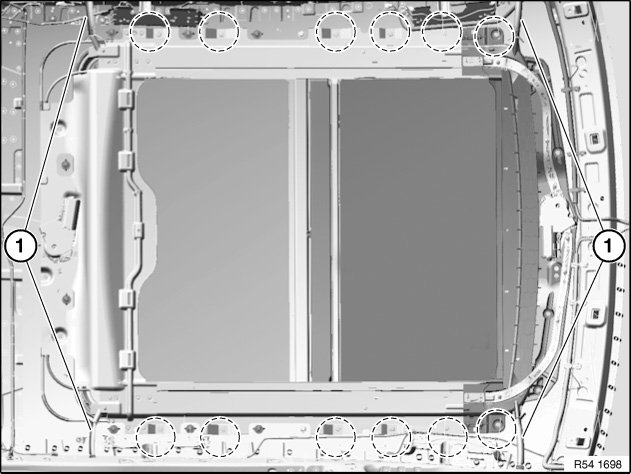

- Release screws in marked area

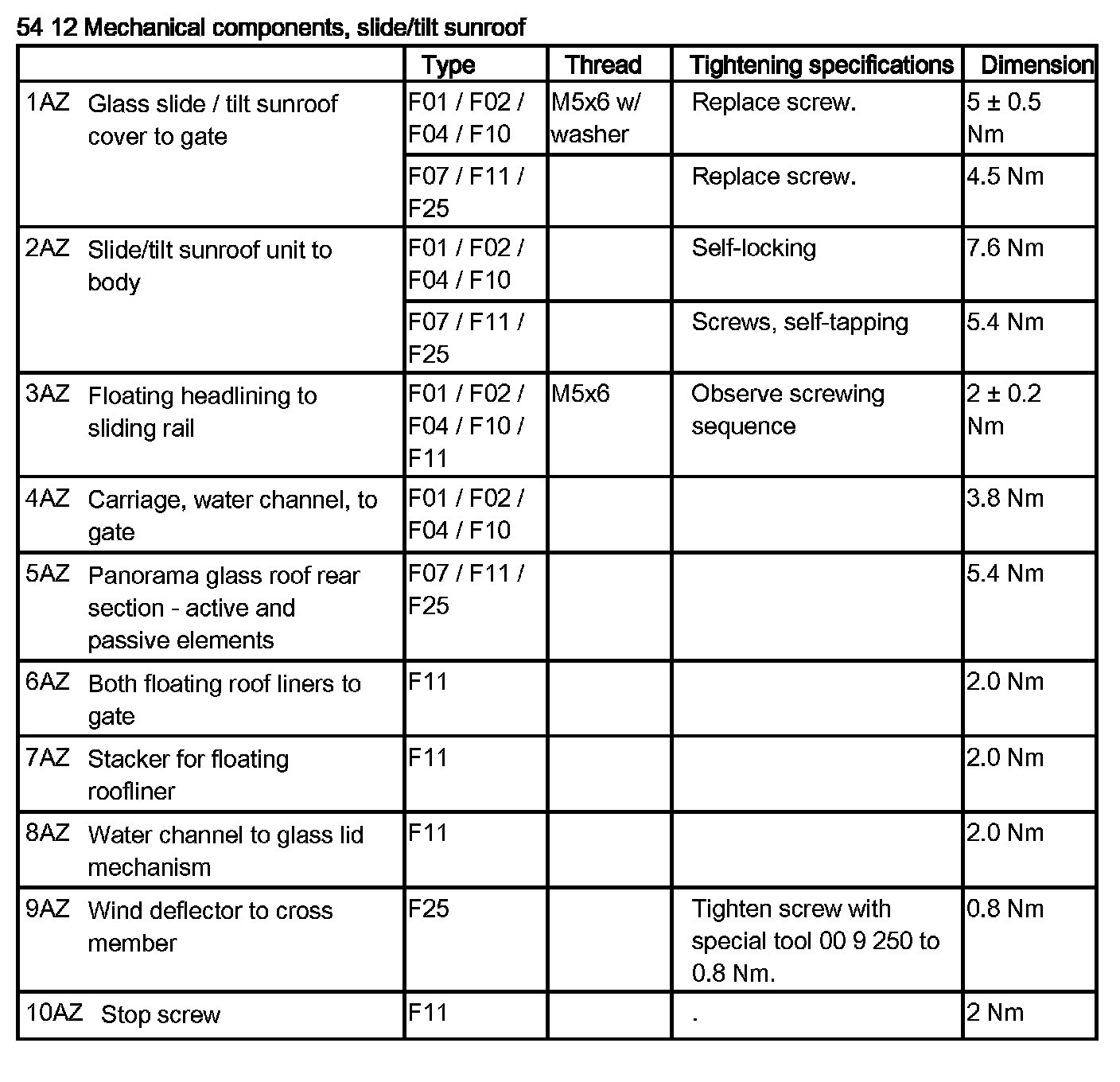

Tightening torque 54 12 02AZ.







- Helper must hold glass slide/tilt sunroof to prevent it falling out.

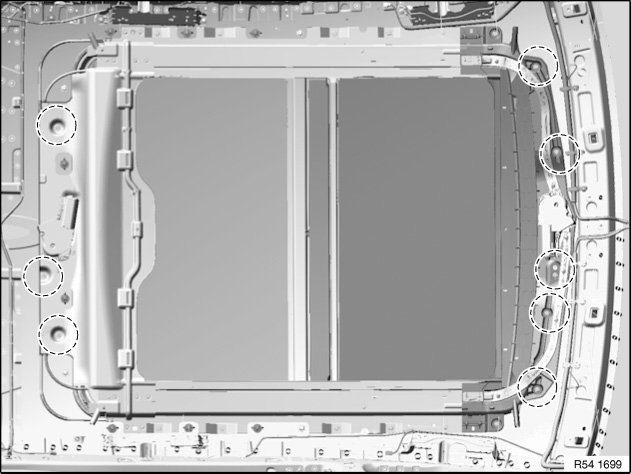

- Release screws in marked area and carefully lower glass slide/tilt sunroof.
Tightening torque 54 12 02AZ.

IMPORTANT: Do not damage any surrounding parts when removing the glass slide/tilt sunroof.

- Remove glass slide/tilt sunroof completely (through rear lid at rear).







Replacement:
- Carry out vehicle programming/coding







IMPORTANT: Do not crush any cables when fitting the glass slide/tilt sunroof.

Installation:
To align panorama sunroof to body-cutout, insert screws and tighten loosely.
Panorama sunroof must still be able to move in the body-cutout.
On account of leaks, panorama sunroof must be exactly aligned to body-cutout.

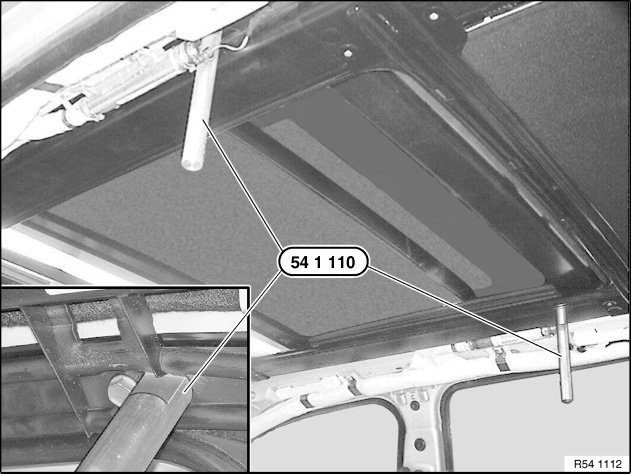

54 1 110 Insert special tool into centring bores up to stop in panorama sunroof and body.
Tighten down screws.
Tightening torque 54 12 02AZ.
Initialize glass slide/tilt sunroof.
