Door Lock Cylinder: Service and Repair

51 21 140 Removing And Installing/Replacing Complete Lock Cylinder In Left Or Right Front Door







Necessary preliminary tasks:
- Remove carrier for outer door handle

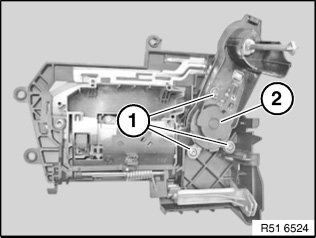

Release screws (1).
Remove gearing cover (2).







Press down latch mechanism (1) slightly.
Turn lock cylinder (2) in direction of latch mechanism (1) and remove.
