51 43 251 Removing and Installing or Replacing Trim Panel For Left or Right Rear Roof Pillar (C-Pillar)

51 43 251 Removing And Installing Or Replacing Trim Panel For Left Or Right Rear Roof Pillar (C-Pillar)







Necessary preliminary work:
- Remove cover on C-pillar at bottom
- Remove rear seat belt (end fitting)

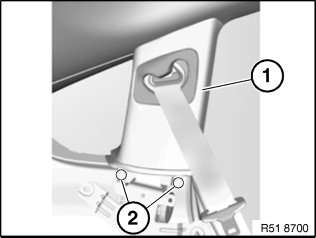

Release expanding rivets (2) from trim panel (1).
Unhook trim panel (1) downward and set aside.

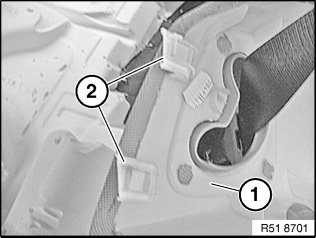

Installation note:
Hooks (2) on trim panel (1) must not be damaged.
