51 47 101 Removing and Installing/Replacing Luggage Compartment Floor Trim Panel

51 47 101 Removing And Installing/Replacing Luggage Compartment Floor Trim Panel







Necessary preliminary tasks:
- Remove front luggage compartment floor trim panel

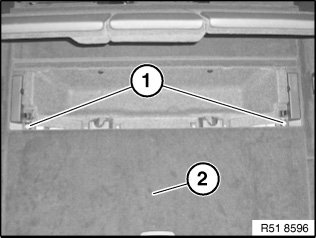

Unscrew nuts (1).
Tightening torque 51 47 2AZ.

Installation:
Check fit of luggage compartment floor trim panel (2) prior to tightening nuts.

Remove luggage compartment floor trim panel (2).
