51 47 ... Removing and Refitting/Replacing Left or Right Privacy Screen

51 47 ... Removing And Refitting/Replacing Left Or Right Privacy Screen







When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.
Operations on right side analogous to left side shown. Use graphics in a mirror-inverted way.







Necessary preliminary tasks:
- Remove screen
- Remove screen damper unit







NOTE: For greater clarity, cover is shown removed in illustration.

Remove cover and undo screws (1).
Tightening torque 51 47 12AZ.
Manoeuvre out privacy screen (2), pulling it outwards.







Installation:

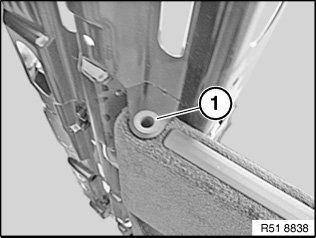

Guide bush (1) must not be damaged.







Replacement
Change over outer privacy screen cover.
