51 47 ... Removing and Installing/Replacing Left or Right Trim Panel

51 47 ... Removing And Installing/Replacing Left Or Right Trim Panel







Necessary preliminary tasks:
- Remove luggage compartment lid on left or
- power distribution box cover on right
- Remove shoulder panel

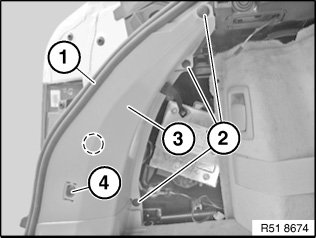

Pull off rear lid seal (1) in area of trim panel (3).

NOTE: For purposes of clarify, screw cover has already been removed in graphic.

Release screw (4) under cover.
Release expanding rivets (2).
Unclip trim panel (3) in marked area and remove.







Installation:
Replace faulty clip (white).

Replacement

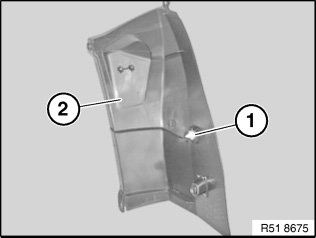

Modify clip (1) of trim panel (2).
