51 47 ... Removing and Installing/Replacing Cover of Cross Member

51 47 ... Removing And Installing/Replacing Cover Of Cross Member







Necessary preliminary tasks:
- Fold backrests forwards.
- Fold up and lock roll-up cover







NOTE: For a better view surrounding components have been omitted.

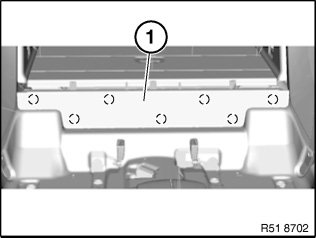

Unclip cover of cross member (1) at marked locations and remove cover.







Installation note:
Replace faulty clips.

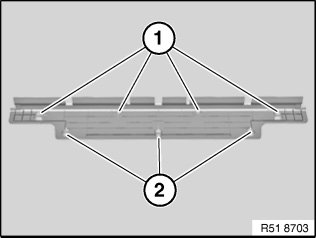

Klipp (1) = yellow
Klipp (2) = White

Replacement
Modify clips (1) and (2).
