51 47 ... Removing and Installing/Replacing Cargo Cover (Middle) Trim

51 47 ... Removing And Installing/Replacing Cargo Cover (Middle) Trim







When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.







Necessary preliminary tasks:
- If necessary, tilt rear seat backrests forward
- If necessary, fold cargo cover (middle) forwards.







Unclip lock trim (1) at marked locations and remove.







Installation:

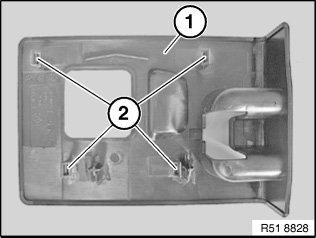

Retaining clips (2) of lock trim (1) must not be bent or broken.

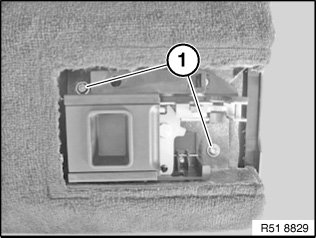

Release screws (1).
Tightening torque 51 47 8AZ.







Fold cargo cover (middle) upwards.

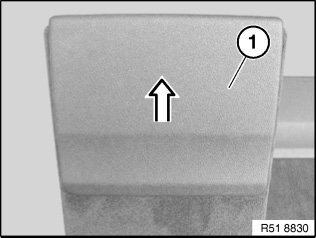

Unhook cargo cover trim (1) towards top.







Installation:
Plastic hooks (2) of cargo cover trim (1) must not be damaged.
