51 43 230 Removing and Installing/Replacing Trim Panel For Left or Right Rear Roof Pillar (C-Pillar)

51 43 230 Removing And Installing/Replacing Trim Panel For Left Or Right Rear Roof Pillar (C-pillar)







Necessary preliminary tasks:
- Remove trim on C-pillar at bottom
- Remove rear seat belt (end fitting)

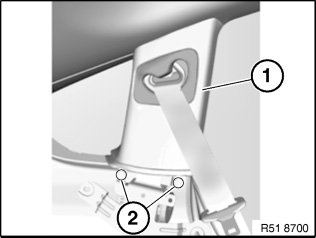

Release expansion rivets (2) from trim panel (1).
Unhook trim panel (1) downward and set aside.







Installation:

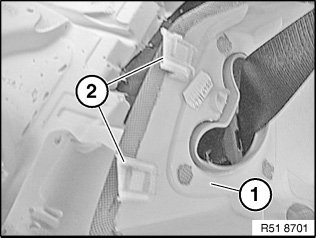

Hooks (2) on trim panel (1) must not be damaged.
