51 43 230 Removing and Installing / Replacing Trim on C-Pillar At Bottom Left or Right

51 43 230 Removing And Installing / Replacing Trim On C-Pillar At Bottom Left Or Right







Necessary preliminary tasks:
- Remove rear entrance cover strip
- Remove screen







Depending on equipment specification:
Pry off speaker cover.

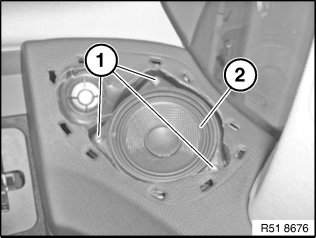

Release screws (1) on speaker (2) losen.
Disconnect plug connections underneath and remove speaker (2).

Installation:
Make sure tweeter wiring is correctly routed.

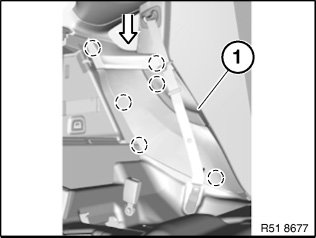

Unclip bottom trim on C-pillar (1) at the marked sites.
Pay attention to retaining tab (arrow) when removing cover.







Replacement

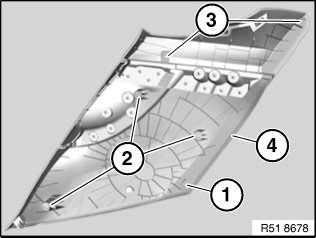

Modify clips (1), (2) and (3) on cover (4).
1 = Natural
2 = White
3 = Blue
