51 43 ... Removing and Installing/Replacing Trim For Rear Roof Pillar (D-Pillar), Left or Right

51 43 ... Removing And Installing/Replacing Trim For Rear Roof Pillar (D-Pillar), Left Or Right







Special tools required:
- 00 9 325







Necessary preliminary tasks:
- Remove trim on C-pillar at bottom
- Remove capping panel

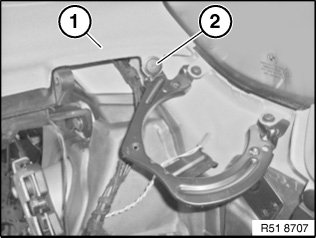

Detach expanding rivet (2) from trim panel (1).

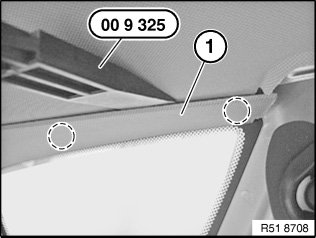

Unclip and remove trim panel (1) from roof frame at marked locations using special tool 00 9 325.







Installation:
Clips (2) must not be damaged.

Replacement
Modify clip (2) of trim panel (1).
