51 16 202 Removing and Installing/Replacing Front Cup Holder

51 16 202 Removing And Installing/Replacing Front Cup Holder







When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.







Necessary preliminary tasks:
- Remove centre console trim

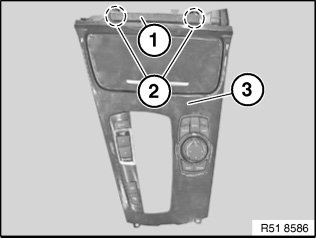

Remove foam strip (1).

Installation:
If necessary, replace foam strip (1).

Release screws (2) on left and right from centre console cover (3).

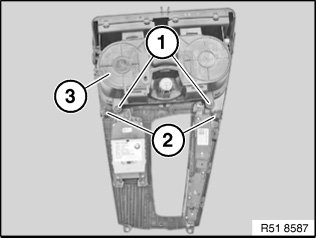

Release screws (1) from cup holder and remove cup holder.







Replacement
Modify decorative trim of cupholder.
