51 45 184 Removing and Installing/Replacing Trim Panel For Pedal Assembly (US Only)

51 45 184 Removing And Installing/Replacing Trim Panel For Pedal Assembly (US Only)







WARNING: Read and comply with safety regulations for handling airbag modules and pyrotechnical belt pretensioners.







IMPORTANT:
- Operations on pyrotechnical devices may only be carried out by authorised experts.
- Improper, unauthorised operations may result in serious dangers.
- Unauthorised persons are strictly prohibited from performing any operations on this system.







Clamp off battery lead from negative terminal

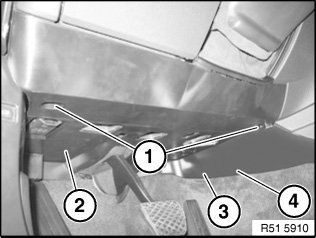

Release screws (1).

Installation:
Replace screws.
Tightening torque 51 45 4AZ.

Unscrew screw (3) and remove carpet trim (4) by pulling forward.
Unclip panel for pedal assembly (2) and lower slightly.
Disconnect plug connections behind.
Remove panel for pedal assembly (2)

Replacement
- Remove footwell light
- Remove speaker for hands-free system
- Remove airbag module
