51 45 184 Removing and Installing/Replacing Trim Panel For Pedal Assembly (ECE Only)

51 45 184 Removing And Installing/Replacing Trim Panel For Pedal Assembly (ECE Only)

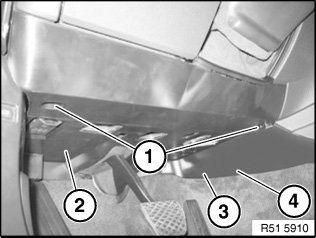

Release screws (1).
Unscrew screw (3) and remove carpet trim (4) by pulling forward.
Unclip panel for pedal assembly (2) and lower slightly.
Disconnect plug connections at the back.
Remove panel for pedal assembly (2)

Replacement
- Remove footwell light
- Remove speaker for hands-free system
