51 45 ... Removing and Installing/Replacing Lower Instrument Panel Cover

51 45 ... Removing And Installing/Replacing Lower Instrument Panel Cover







Special tools required::
- 64 1 020







When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

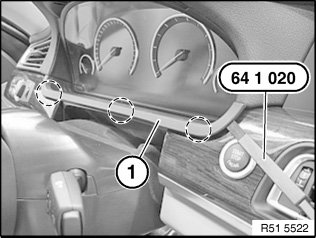

Carefully unclip cover (1) with special tool 64 1 020 at marked points and remove.

Installation note:
If necessary, replace faulty clamps on back of cover (1).

Replacement
Modify clamps.
