51 16 227 Removing and Installing/Replacing Trim on Centre Console At Side Left or Right

51 16 227 Removing And Installing/Replacing Trim On Centre Console At Side Left Or Right







When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.







Necessary preliminary tasks:
- Remove complete centre console

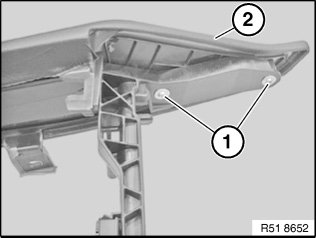

Release screws (1) on back of trim (2).

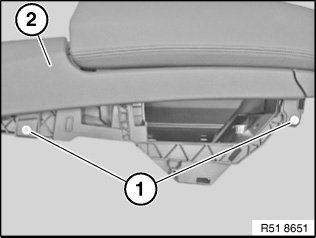

Release screws (1) on front of trim (2).
Remove trim (2).
