51 16 195 Removing and Installing/Replacing Centre Armrest

51 16 195 Removing And Installing/Replacing Centre Armrest







When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.







Pull the front mat insert (1) up and remove.
Then pull the rear mat insert (2) up in the front and remove.

Installation:
Cleanly adjust rubber nipples and lugs of mat inserts.







First pull left and right centre console covers (1) back toward the inside, then unhook in the front and remove.







For telephone outfitting version:
Remove eject box.
Release screw (1) on centre console right cover (2).
Remove cover (2) as described above (Eject-Box and cover (2) remain in the storage compartment).

Installation:
Adjust covers. On the left, also note USB / AUX-IN port.

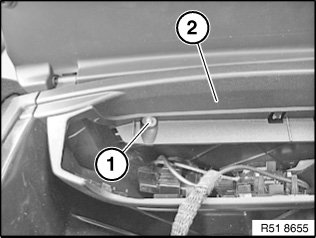

Release left and right bolts (1) on centre armrest (2).
Tightening torque 51 16 13AZ.
Remove centre armrest (2).

��!:":
